Type 1+2 AC surge protector - 3-phase

DUT250VG-300/TNC
Part Number 3588
DUT250VG-300/TNC
  • Type 1+2+3, 3-phase surge protector
  • Common and differential mode
  • Very compact monobloc enclosure
  • Iimp by pole/total : 25kA
  • Internal disconnection, status indicator
  • Optimized to TOV
  • EN 61643-11, IEC 61643-11 and UL1449 ed.5 compliance
Contact Us
The DUT250VG is a compact and heavy duty Type 1+2+3 SPD, designed to be connected at the entrance of the electrical installation, on a 3-phase 230/400 V AC network. The Spark gap + Varistor technology allows a very low level of protection and an absence of following current. The DUT250VG is a 3-phase SPD and provides a common and differential mode protection. This SPD is built in a compact enclosure for DIN rail mounting.
Select another reference:
SPD type
IEC

1+2+3
Network

230/400 V 3-phase
AC system

TNC
Nominal line voltage
 Un

230/400 Vac
Max. AC operating voltage
Uc

255 Vac
Temporary Over Voltage (TOV) Characteristics - 5 sec.
Without disconnection
 UT

335 Vac withstand
Temporary Over Voltage (TOV) Characteristics - 120 mn
Without disconnection or with safety disconnection
 UT

440 Vac withstand
Residual Current
Leakage current to Ground
 Ipe

None
Follow current
If

None
Nominal discharge current
15 x 8/20 µs impulses
 In

40 kA
Max. discharge current
max. withstand @ 8/20 µs by pole
 Imax

100 kA
Impulse current by pole
max. withstand 10/350µs by pole
 Iimp

25 kA
Total lightning current
max. total withstand @ 10/350µs
 Itotal

75 kA
Withstand on Combination waveform IEC 61643-11
Class III test: 1.2/50µs - 8/20µs
 Uoc

6 kV
Withstand on overvoltages IEEE C62.41.1

20 kV
Specific energy by pole
max. withstand 10/350 µs
 W/R

156 kJ/ohm
Connection mode(s)

L/PEN
Protection mode(s)

Common mode
Protection level L/PE
@ In (8/20µs)
 Up L/PE

1.5 kV
Admissible short-circuit current
 Isccr

50 000 A
Technology

VG Technology (MOV+GSG)
SPD configuration

3-phase
Connection to Network

By screw terminals: 6-35mm² / by bus
Format

Multipolar modular box
Mounting

Symmetrical rail 35 mm (EN 60715)
Housing material

Thermoplastic UL94 V-0
Operating temperature
 Tu

-40/+85°C
Protection rating

IP20
Disconnection indicator

3 mechanical indicators by pole
Remote signaling of disconnection

none

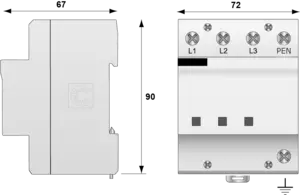

Dimensions

See diagram
Weight

0.61 kg
Standards compliance

IEC 61643-11 / EN 61643-11 / UL1449 ed.5
Certification
Thermal disconnector

Internal
Installation ground fault breaker

Type 'S' or delayed
Back-up protection device

Fuse assembly: SFD1-25-30S / or Fuses Type gG 315 A
