Protection for your data center
Given the diversity and sensitivity of the equipment, protecting a data center is absolutely essential.
Data centers form the backbone of today's digital world for countless industries - from finance to healthcare, from e-commerce to entertainment.
Reliable and uninterrupted operation is a prerequisite for the smooth flow of data and services that businesses and individuals depend on every day.
CITEL offers a comprehensive range of surge protection devices (SPDs) that comply with international standards, providing a comprehensive surge protection solution for data centers. Our range includes high-performance SPDs for power supplies, special SPDs for switchgear, frequency converters, solar systems, energy storage systems (ESS), data lines, and high-frequency technology.
CITEL has the right protection, no matter which system in a data center needs to be protected!

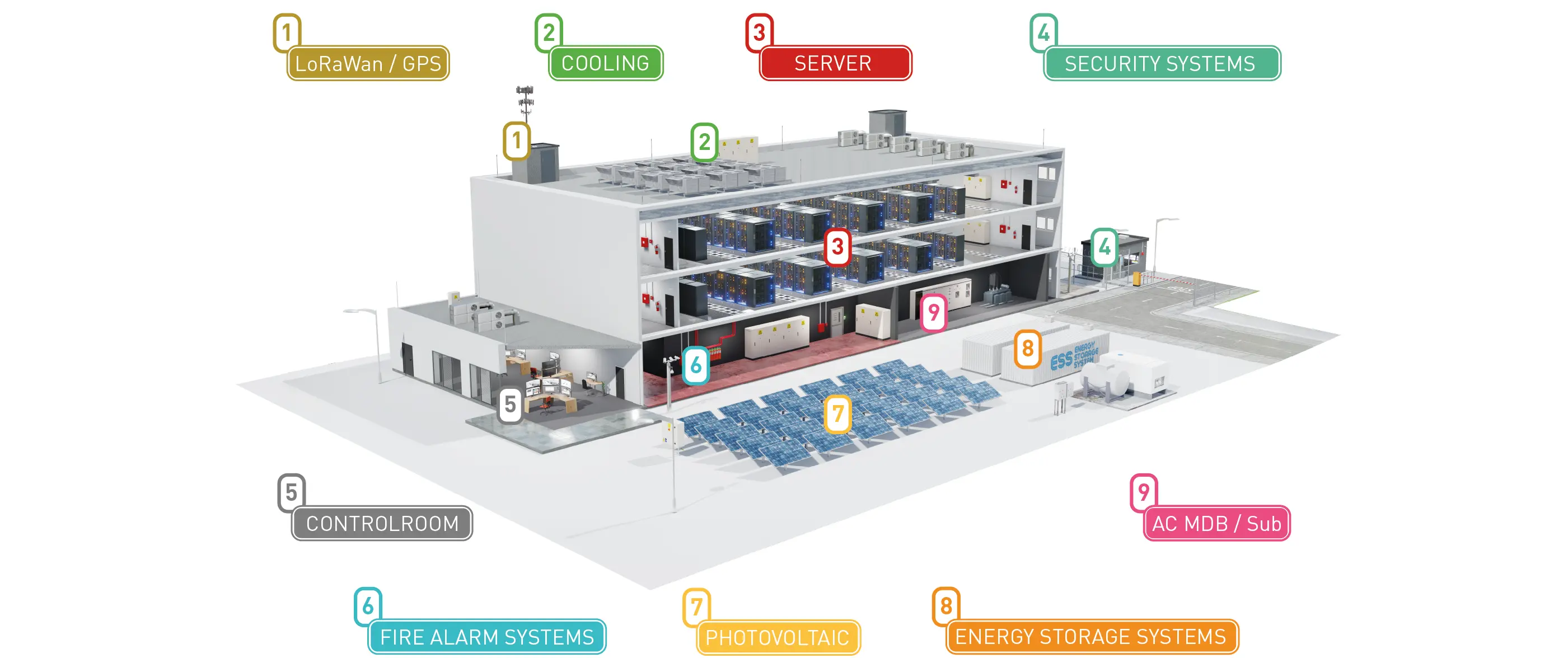

Product selection
Installation location | Product name | Description | Product image |
AC VOLTAGE | Combined SPD Type 1+2+3 based on a gas-filled spark gap, 10-year warranty, Rating per pole: In = 25 kA (8/20 μs); Iimp = 25 kA (10/350 μs), Safe disconnecting device, remote signaling as standard, Optimized for TOV, Complies with standards IEC 61643-11 and EN 61643-11 |
| |
SECURITY SYSTEMS | Surge Protector for 10Gb PoE++ Cat6A Ethernet Applications Shielded RJ45 Connectors Outdoor Use: IP67 Aluminum housing, metal cable glands Test categories: D1, C2, C3 Compliant with IEC 61643-21, NF EN 61643-21 |
| |
ENERGY STORAGE SYSTEME | DC Type 2 SPD Rating per pole: In = 20 kA (8/20 µs); Imax = 50 kA (8/20 µs) Plug-in protection modules Remote signaling as standard Complies with IEC 61643-41 and IEC 61643-11 standards |
| |
PHOTOVOLTAICS | Combined SPD Type 1+2+3 CTC Technology / VG Technology / 10-Year Warranty Surge capacity per pole: Iimp/Itotal = 6.25/12.5 kA (10/350 μs); In = 20 kA (8/20 μs) Safe disconnecting device Remote signaling No leakage currents to ground Fault-tolerant Y-connection No interference with insulation measurement No damage in case of insulation faults Complies with standards IEC 61643-31, EN 61643-31, EN 50539-11, and UL1449 ed.5 |
| |
FIRE ALARM SYSTEMS | Type 2 and 3 SPD Space-saving monoblock housing In: 5 kA per pole / Imax: 10 kA per pole Compliant with IEC 61643-11 / EN 61643-11 / UL 1449, 5th edition |
| |
CONTROLLROOM | SPD for Ethernet Applications For POE++ (IEEE 802.3bt) – 10Gb (5–100 m) in Cat6A S/FTP SPD Categories D1, C3, C2, C1 Protection Rating IP20 (NEMA 2) Metal Housing (Aluminum) Compliant with IEC/EN 61643-21 |
| |
SERVERS | SPD for Ethernet Applications For POE++ (IEEE 802.3bt) – 10Gb (5–100 m) in Cat6A S/FTP SPD Categories D1, C3, C2, C1 Protection Rating IP20 (NEMA 2) Metal Housing (Aluminum) Compliant with IEC/EN 61643-21 |
| |
COOLING | Combined SPD Type 1+2+3 with VG technology for DIN rail, 10-year warranty, discharge capacity per pole: Iimp = 12.5 kA (10/350 μs), Free of operating and leakage currents, Complies with standards IEC 61643-11 and EN 61643-11, VDE-AR-N 4100 compliant |
| |
LoRaWan / GPS | HF Coaxial Surge Protector 4 GHz / Connector Type: N Low insertion loss Replaceable gas discharge tube DC-pass / Bidirectional |
|
