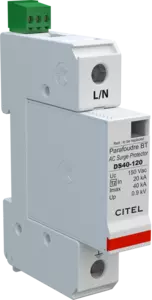

Type 2 AC surge protector - 1-pole - pluggable

DS41S-120
Part Number 331611
DS41S-120
  • Type 2 AC surge protector
  • In : 20 kA
  • Imax : 40 kA
  • Pluggable module for each phase
  • Remote signaling
  • NF EN 61643-11, IEC 61643-11 compliance
  • UL1449 ed.5
Contact Us
used mainly for primary protection of single and 4- phase networks at the main electrical panel. They provide common-mode or common and differential mode. This SPD is based on high energy varistor equipped with thermal disconnector and failure indicator, to comply with standards. The DS40 surge protectors are designed to be used in a multipolar configuration to protect single-phase, 3-phase or 3-phase+Neutral AC networks.They are sometimes associated with dedicated N/PE surge protector based on gas tube technology.
SPD type
2
Network
 120/208 V
Nominal line voltage
 Un 120 Vac
Max. AC operating voltage
Uc 150 Vac
Temporary Over Voltage (TOV) Characteristics - 5 sec.
Without disconnection
 UT 180 Vac withstand
Temporary Over Voltage (TOV) Characteristics - 120 mn
Without disconnection or with safety disconnection
 UT 230 Vac disconnection
Residual Current
Leakage current to Ground
 Ipe < 0.5 mA
Operating current
Continious current at Uc
 Ic 0.5 mA
Follow current
If None
Nominal discharge current
15 x 8/20 µs impulses
 In 20 kA
Max. discharge current
max. withstand @ 8/20 µs by pole
 Imax 40 kA
Connection mode(s)
 L/N or N/PE
Protection mode(s)
 Common Mode or Differential Mode
Protection level
@ In (8/20µs)
 Up 0.9 kV
Residual voltage at 5 kA
@ 5 kA (8/20µs)
 Up-5kA 0.6 kV
Residual voltage at 10 kA
@ 8/20µs
 Up-10kA 0.7 kV
Admissible short-circuit current
 Isccr 25 000 A
Technology
 MOV
SPD configuration
 Single phase
Connection to Network
 By screw terminals: 2.5-25mm² / by bus
Format
 Plug-in modular box
Mounting
 Symmetrical rail 35 mm (EN 60715)
Housing material
 Thermoplastic UL94 V-0
Operating temperature
 Tu -40/+85°C
Protection rating
 IP20
Failsafe mode
 Disconnection from AC network
Disconnection indicator
 1 mechanical indicator
Spare module(s)
 DSM40-120
Remote signaling of disconnection
 Output on changeover contact
Dimensions
 See diagram
Weight
 0.111 kg
Standards compliance
 IEC 61643-11 / EN 61643-11 / UL1449 ed.5
Certification
 CSA / UL Listed
Thermal disconnector
 Internal
Installation ground fault breaker
 Type 'S' or delayed
Back-up protection device
Fuses type gG - 50 A
