Telecom
DIN Rail Telecom/Data surge protector

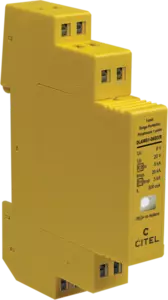

DLAWS1-06D3/R
1-pair DIN rail plug-in Data surge protector
DLAWS1-06D3/R
Part Number:
6419014
1-pair Surge protection
Pluggable protection module
Optical fault indication
Indirect shield connection
Visual indicator in failsafe behaviour
Indirect earthing
Current circuit disconnection when module is unplugged
Conforms to IEC 61643-21, VDE 0845-3-1 and UL497B
Datasheet
Installation Sheet
Tender specifications
Contact Us
The surge protection devices of the DLAWS1 series protect I&C, telecommunication and data technology systems against lightning effects and overvoltages. These surge protectors were developed for the protection of one twin wire and can be used for all applications with voltages from 6 V to max. 48 V and transmission rates of up to 10 Mbps. The electrical circuitry of the DLAS consists of a combination of high-performance gas discharge tubes and fast-switching diodes for high discharge capacity and fast response. The shield connection is additionally earthed via a gas discharge tube. Earthing is simply done via the top-hat rail. When the plug-in module is disconnected, the transmission signal is interrupted. Error signalling is via an optical display.
Select another reference:
DLAWS1-06D3
DLAWS1-06D3/R
DLAWS1-12D3
DLAWS1-12D3/R
DLAWS1-24D3
DLAWS1-24D3/R
DLAWS1-48D3
DLAWS1-48D3/R
Electrical Properties
Mechanical Properties
Norms
Schemas
Network
RS422
Nominal line voltage
Un
6 V
Max. DC operating voltage
Uc
8 Vdc
Max. frequency
f max.
> 3 MHz
Insertion loss
< 1 dB
Max. load current
IL
300 mA
Max. discharge current
Imax
20 kA
Line inductance
No
Protection mode(s)
Common/Differential mode
Protection level
Up
20 V
Impulse current
Iimp
5 kA
Nominal discharge current
In
5 kA
Line/Line Nominal discharge current
In L/L
5 kA
Line/Ground Nominal discharge current
In L/PE
5 kA
Line resistance
< 4.7 Ohm
Disconnection
Specific version with line cut-off in case of removal plug-in module
Technology
GDT+Clamping diode+PTC (thermal resistor) + Resistor
SPD configuration
1-pair+shielded
Connection to Network
By spring contact terminal
Format
Plug-in DIN box
Mounting
Symmetrical rail 35 mm (EN 60715)
Housing material
Thermoplastic UL94 V-0
Operating temperature
Tu
-40/+85°C
Protection rating
IP20
Failsafe mode
Opening line - transmision cut-off - fault mode 2
With line cut-off in case of removal plug-in module
Yes
Disconnection indicator
Red light on
Spare module(s)
DLAWS1M-06D3
Dimensions
See diagram
Weight
0.063 kg
Standards compliance
IEC 61643-21 / EN 61643-21 / UL497A
×
