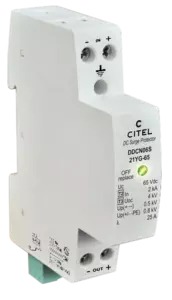

Compact Type 2 (or 3) DC surge protector - 65 V - Monobloc

DDCN06S-21YG-65
Part Number 70134052
DDCN06S-21YG-65
  • DC Power Type 2+3 SPD
  • 2-port configuration (series mounting)
  • Compact and Cost effective
  • In/Imax: 2 kA/6 kA
  • Max. load current: 25A
  • Disconnection + AC line cut
  • Remote signaling
  • EN 61643-11, IEC 61643-11 compliance
Contact Us
The devices of the DDCN series are SPDs of type 2+3 and designed for use in applications with nominal voltages of 24 or 48 Vdc, such as sensitive sensors, control systems in industry, etc.. The DDCN can be used as 1-port or 2-port SPD. The generously dimensioned connection cage with its capacity for cable cross-sections of up to 10 mm² ensures practical installation. The 2-pole DC surge arresters are designed for DIN rail mounting and occupy only 1 HP. The certification as type 2 + 3 was based on tests with similar parameters, which are also used for AC SPDs, but also according to the draft of P DIN IEC 61643-41 "Surge protective devices for use in low-voltage DC installations - Requirements and tests".
Nominal DC voltage
 Un-dc 48 Vdc
Max. DC operating voltage
 Uc 65 Vdc
Max. load current
@25°C
 IL 25 A
Residual Current
Leakage current to Ground
 Ipe None
Nominal discharge current
15 x 8/20 µs impulses
 In 2 kA
Max. discharge current
max. withstand @ 8/20 µs by pole
 Imax 6 kA
Withstand on Combination waveform IEC 61643-11
Class III test: 1.2/50µs - 8/20µs
 Uoc 4 kV
Connection mode(s)
 +/-/PE
Protection level +/-
@ In (8/20µs)
 Up 0.5 kV
Protection level +/PE (-/PE)
@ In (8/20µs)
 Up 0.8 kV
Admissible short-circuit current
 Isccr 10 000 A
Network type
 DC
SPD configuration
 Single phase
Connection to Network
 By screw terminals: 1.5-10mm²
Plugable
 No
Mounting
 Symmetrical rail 35 mm (EN 60715)
Housing material
 Thermoplastic UL94 V-0
Operating temperature
 Tu -40/+85°C
Protection rating
 IP20
Outdoor application
 No
Failsafe mode
 Disconnection from DC network
Disconnection indicator
 Green LED OFF
Remote signaling of disconnection
 output on NC contact
Dimensions
 See diagram - 1TE (EN43880)
Weight
 0.089 kg
Standards compliance
 IEC 61643-11 / prIEC 61643-41
Thermal disconnector
 Internal
Back-up protection device
Fuses type gG - 25A
