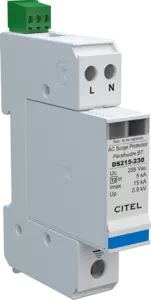

Compact 1-phase Type 2 (or 3) surge protector - 230 V - Pluggable

DS215S-230
Part Number 451711
DS215S-230
  • Discover our latest innovation : the DAC15CS-20-275
  • Compact single-phase type 2 (or 3) surge protector
  • In : 5 kA
  • Imax : 15 kA
  • Common mode
  • Pluggable module
  • Remote signaling
  • EN 61643-11, IEC 61643-11 compliance
  • UL1449 ed.5

The DS215 Type 2 surge protectors are compact devices designed to protect single phase networks at the main switchboard. They provide a common or common/differential mode protection. This SPD is based on high energy varistor equipped with thermal disconnectors and failure indicator to comply with standards. The DS215 is DIN rail compatible and is built with a plug-in module and fixed base, which allows an easy and fast maintenance.

Select another reference:

SPD type
IEC

2 (or 3)

Network

230 V single-phase

AC system

TN

Nominal line voltage
Un

230 Vac

Max. AC operating voltage
Uc

255 Vac

Max. load current
if series connection
IL

20 A

Temporary Over Voltage (TOV) Characteristics - 5 sec.
Without disconnection
UT

335 Vac withstand

Temporary Over Voltage (TOV) Characteristics - 120 mn
Without disconnection or with safety disconnection
UT

440 Vac disconnection

Residual Current
Leakage current to Ground
Ipe

< 0.5 mA

Follow current
If

None

Nominal discharge current
15 x 8/20 µs impulses
In

5 kA

Max. discharge current
max. withstand @ 8/20 µs by pole
Imax

15 kA

Withstand on Combination waveform IEC 61643-11
Class III test: 1.2/50µs - 8/20µs
Uoc

10 kV

Withstand on overvoltages IEEE C62.41.1

10 kV

Connection mode(s)

L/PE and N/PE

Protection mode(s)

Common mode

Residual voltage at 5 kA
@ 5 kA (8/20µs)
Up-5kA

0.9 kV

Protection level CM/DM
@ In (8/20µs)
Up mc/md

0.9 kV

Admissible short-circuit current
Isccr

10 000 A

Technology

MOV

SPD configuration

Single phase

Connection to Network

By screw terminals: 1.5-10mm² (L/N) or 2.5-25mm² (PE)

Format

Plug-in modular box

Mounting

Symmetrical rail 35 mm (EN 60715)

Housing material

Thermoplastic UL94 V-0

Operating temperature
Tu

-40/+85°C

Protection rating

IP20

Failsafe mode

Disconnection from AC network

Disconnection indicator

2 mechanical indicators

Spare module(s)

DSM215-230

Remote signaling of disconnection

Output on changeover contact

Dimensions

See diagram

Standards compliance

IEC 61643-11 / EN 61643-11 / UL1449 ed.5

Certification

UL / CSA

Thermal disconnector

Internal

Installation ground fault breaker

Type 'S' or delayed

Back-up protection device

Fuses type gG - 20A
