LED
DIN rail LED surge protection
DSLP1-120L

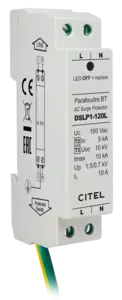

Surge protector for LED lighting system Class 1
DSLP1-120L
Part Number
352912
Type 2 (or 3) surge protectors for LED
Very compact (low profile)
DIN rail mounting
Screw terminal connection
Status indicator
Disconnection AC end of life
EN 61643-11, IEC 61643-11 compliance
Datasheet
Installation Sheet
Tender specifications
Contact Us
DSLP range is an AC series surge protectors for DIN mountage create to protect LED systems. The surge protectors DSLP are verry compact to be integrated in the luminaires and are available in 2 connection modes (terminal screw or spring).
Select another reference:
DSLP1-120L/Y
DSLP1-230L
DSLP1-230L/Y
DSLP2-230L
Electrical Properties
Mechanical Properties
Norms
Deconnector
Schemas
SPD type
2 (or 3)
Network
120 V single-phase
AC system
TT-TN
Nominal line voltage
Un
120 Vac
Max. AC operating voltage
Uc
150 Vac
Max. load current
@25°C
IL
10 A
Temporary Over Voltage (TOV) Characteristics - 5 sec.
Without disconnection
UT
180 Vac withstand
Temporary Over Voltage (TOV) Characteristics - 120 mn
Without disconnection or with safety disconnection
UT
230 Vac disconnection
Temporary Over Voltage N/PE (TOV HT)
Without disconnection or with safety disconnection
UT
1200 V/300A/200 ms disconnection
Residual Current
Leakage current to Ground
Ipe
None
Nominal discharge current
15 x 8/20 µs impulses
In
5 kA
Max. discharge current
max. withstand @ 8/20 µs by pole
Imax
10 kA
Total Maximum discharge current
max. total withstand @ 8/20 µs
Imax Total
20 kA
Withstand on Combination waveform IEC 61643-11
Class III test: 1.2/50µs - 8/20µs
Uoc
10 kV / 5 kA
Withstand on overvoltages IEEE C62.41.1
10 kV / 10 kA
Protection mode(s)
Common/Differential mode
Protection level L/N
@ In (8/20µs)
Up L/N
0.7 kV
Protection level N/PE
@ In (8/20µs)
Up N/PE
1.5 kV
Admissible short-circuit current
Isccr
10 000 A
Technology
MOV+GDT
Connection to Network
Screw terminal 2.5 mm² max. Earthing conductor 2 mm² - length 60 cm
Mounting
Symmetrical rail 35 mm (EN 60715)
Housing material
Thermoplastic UL94 V-0
Operating temperature
Tu
-40/+85°C
Protection rating
IP20
Failsafe mode
Disconnection from AC network
Disconnection indicator
LED green OFF and AC network cut-off
Voltage/operating indicator
Green Led ON
Dimensions
See diagram
Standards compliance
EN 61643-11 / IEC 61643-11
Certification
CB
Thermal disconnector
Internal
Installation ground fault breaker
Type 'S' or delayed
×
Description:
Surge protector for LED lighting system Class 1
Standards compliance:
EN 61643-11 / IEC 61643-11
Certification:
CB / EAC
Technology:
MOV+GDT
SPD type :
2 (or 3)
Network:
120 V single-phase
AC system:
TT-TN
Max. AC operating voltage :
150 Vac
Residual Current :
None
Max. discharge current :
10 kA
Total Maximum discharge current :
20 kA
Admissible short-circuit current:
10 000 A
