DS98L series

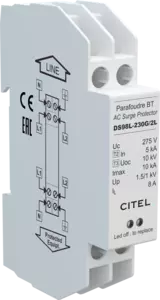

DS98L-230G/2L
Compact single-phase type 2 (or 3) surge protector - Monobloc
DS98L-230G/2L
Part Number
351933
Cost effective single-phase surge protector
Safety disconnection in-line
Double connection in series
Common/Differential mode
Datasheet
Installation Sheet
Tender specifications
Contact Us
DS98L AC surge protector is used for the 'secondary' protection of the single-phase networks against the surge voltages creating by lightning. DS98 is equipped with in-line safety disconnectin and double output connection. The disconnection will be indicate by the turn on of the red led in the front. Very compact, the DS98L surge protector must be installed close by the equipment to protect, downstream a 'primary' surge protector. DS98L provides both a common and differential mode protection.
Select another reference:
Electrical Properties
Mechanical Properties
Norms
Deconnector
Schemas
SPD type
2 (or 3)
Network
2-phase + N 230 V
AC system
TT-TN
Nominal line voltage
Un
230 Vac
Max. AC operating voltage
Uc
275 Vac
Max. load current
@25°C
IL
8 A
Temporary Over Voltage (TOV) Characteristics - 5 sec.
Without disconnection
UT
335 Vac withstand
Temporary Over Voltage (TOV) Characteristics - 120 mn
Without disconnection or with safety disconnection
UT
440 Vac disconnection
Operating current
Continious current at Uc
Ic
None
Follow current
If
None
Nominal discharge current
15 x 8/20 µs impulses
In
5 kA
Max. discharge current
max. withstand @ 8/20 µs by pole
Imax
10 kA
Withstand on Combination waveform IEC 61643-11
Class III test: 1.2/50µs - 8/20µs
Uoc
10 kV
Withstand on overvoltages IEEE C62.41.1
10 kV
Connection mode(s)
L/N/PE
Protection mode(s)
Common/Differential mode
Protection level L/N
@ In (8/20µs)
Up L/N
1 kV
Protection level N/PE
@ In (8/20µs)
Up N/PE
1.5 kV
Admissible short-circuit current
Isccr
10 000 A
SPD configuration
2-phase+N
Connection to Network
By screw terminals: 2.5mm² max.
Format
Monobloc modular box
Mounting
Symmetrical rail 35 mm (EN 60715)
Housing material
Thermoplastic UL94 V-0
Operating temperature
Tu
-40/+85°C
Protection rating
IP20
Outdoor application
No
Failsafe mode
Disconnection from AC network
Disconnection indicator
Green LED OFF
Remote signaling of disconnection
No
Dimensions
See diagram
Weight
0.069 kg
Standards compliance
IEC 61643-11 / EN 61643-11 / UL1449 ed.5
Certification
Thermal disconnector
Internal
Installation ground fault breaker
Type 'S' or delayed
Back-up protection device
Fuse type gG - 16 A
×
Description:
Compact single-phase type 2 (or 3) surge protector - Monobloc
Standards compliance:
IEC 61643-11 / EN 61643-11 / UL1449 ed.5
Certification:
EAC
SPD configuration:
2-phase+N
Remote signaling of disconnection:
No
SPD type :
2 (or 3)
Network:
2-phase + N 230 V
AC system:
TT-TN
Max. AC operating voltage :
275 Vac
Max. discharge current :
10 kA
Admissible short-circuit current:
10 000 A
CITEL
Reference:
DS98L-230G/2L
Part Number:
351933
Or equivalent
