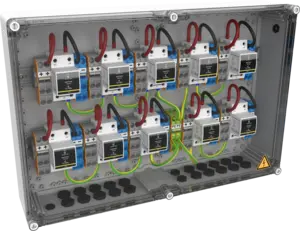

PV-DC-Junction box

GAK10.K4x16.K1x16.DP6VG-1-XS

Part Number 157619

Generator junction box for 10 MPP tracker / 4 strings
Integrated surge protection device - DPVN1-6CVG-21Y-1200 (Type 1+2+3)
Protection class IP65
Connection via spring terminals (6-16mm²)

With the generator junction boxes of the GAK10 series, CITEL offers a solution to protect photovoltaic systems of any kind against the effects of lightning and overvoltages. The GAK10 series is designed to protect up to 6 MPP trackers and maximum system voltages (Ucpv) up to 1200 Vdc. Depending on the configuration, the GAK10 meet the normative requirements for all types of buildings with or without external lightning protection system up to lightning protection class I (Iimp = 12.5 kA / pole (10/350)).

Select another reference:

Electrical Properties Mechanical Properties Norms Schemas

SPD type		1+2+3
Network		PV network 1000 Vdc
Nominal DC voltage	Un-dc	1000 Vdc
Max. PV operating voltage	Ucpv	1200 Vdc
Rated insulation voltage Ui	Ui	1000 Vdc
Rated current InA	InA	50 A
Rated string current	InC	25 A

Input / per MPPT		Spring clamp terminals / 4x 6-16mm²
Output / per MPPT		Spring terminals / 1x 6-16mm²
Cable gland		Metric / 12x M40 (Ø 16-28mm) / 1x M20 (Ø 6-13mm)
Housing material		UV and ozone resistant, fiberglass reinforced polycarbonate
Dimensions		WxHxD (mm): 130 x 180 x 111

Standards compliance

DIN EN 50539-11
