Type 1 PV surge protector
DS50PVS-1500/12KT1
Type 1+2 PV surge protector - 1500 Vdc
DS50PVS-1500/12KT1
Part Number:
482573
Type 1+2 surge protector for Photovoltaic
Impulse currents Iimp/Itotal : 6.25/12.5 kA (10/350µs)
Common/Differential mode protection
Remote signaling
EN 61643-31/ EN 50539-11 compliance
Datasheet
Installation Sheet
Tender specifications
Contact Us
Type 1 + 2 surge protection (SPD) DS50PV/12KT1 are intended for the protection of photovoltaic power grids. The SPD cartridges are pluggable to ensure quick replacement in the event of a defect. The protection circuit consists of a fault-resistant Y-circuit with a gas discharge tube and high-power varistors. The products are available with a remote signaling system of the state of the surge protectior.
Select another reference:
DS50PVS-1000G/12KT1
DS50PVS-1500/12KT1
Electrical Properties
Mechanical Properties
Norms
Deconnector
Schemas
SPD type
1+2
Network
PV network 1250 Vdc
Nominal PV voltage
Uocstc
1250 Vdc
Max. PV operating voltage
Ucpv
1500 Vdc
Residual Current
Ipe
< 0.3 mA
PV Permanent Operating current
Icpv
< 0.1 mA
Follow current
If
None
Nominal discharge current
In
15 kA
Max. discharge current
Imax
40 kA
Total Maximum discharge current
Imax Total
60 kA
Impulse current by pole
Iimp
6.25 kA
Total lightning current
Itotal
12.5 kA
Current withstand short circuit PV
Iscpv
15 000 A
Connection mode(s)
+/-/PE
Protection mode(s)
Common/Differential mode
Protection level +/PE (-/PE)
Up
5.3 kV
Technology
MOV
Connection to Network
By screw terminals: 2.5-25mm²
Format
Plug-in modular box
Plugable
Yes
Mounting
Symmetrical rail 35 mm (EN 60715)
Housing material
Thermoplastic UL94 V-0
Operating temperature
Tu
-40/+85°C
Protection rating
IP20
Outdoor application
No
Disconnection indicator
3 mechanical indicators
Spare module(s)
DSM50PV-1500/12KT1
Remote signaling of disconnection
Output on changeover contact

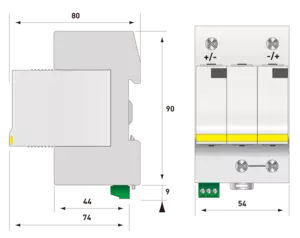

Dimensions
See diagram
Weight
0.477 kg
Standards compliance
IEC 61643-31 / EN 61643-31 / EN 50539-11
Certification
EAC
Thermal disconnector
Internal
Fuses
Without
×
