Telecom
Accessories for E280 plug-in modules
MMP
Support for E280 plug-in modules
MMP
Part Number:
71480
Connector strip for 2 x E280
Max. number of pairs : 4
Datasheet
Installation Sheet
Tender specifications
Contact Us
This connector strip MMP, designed to receive 2x E280 surge protectors (4 pairs), is installed on MDF in mechanical adaptation with the other connector strips. Earthing is automatically performed through the pin in contact with the metallic frame
Select another reference:
Electrical Properties
Mechanical Properties
Schemas
Network
Low current
Max. frequency
f max.
> 20 MHz
Insertion loss
< 1 dB
Max. load current
IL
5 A
Max. discharge current
Imax
10 kA
Impulse current
Iimp
2.5 kA
Nominal discharge current
In
5 kA
SPD configuration
4 pairs
Connection to Network
Earth pin
Format
Strip
Mounting
MDF
Housing material
Thermoplastic UL94 V-0
Operating temperature
Tu
-40/+85°C
Protection rating
IP20
Outdoor application
No
Connection
connector CAD
Max. number of E280s
2
Max. number of pairs
4

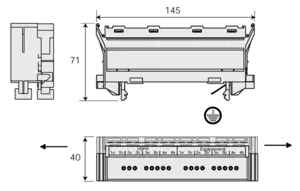

Dimensions
See diagram
×
