DIN Rail Telecom/Data surge protector
DLAH-24D3

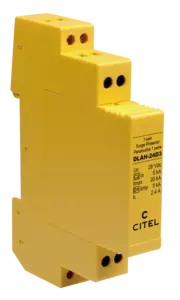

1-pair DIN rail plug-in Data surge protector
DLAH-24D3
Part Number:
641003
Pluggable surge protection for «DIN» mounting
Coordination inductor
Up to 2.4 A line current
Remote supply version
All types of Telephone and Data lines
Shield wire protection
IEC 61643-21 compliance
Datasheet
Tender specifications
Contact Us
DLAH surge protectors are designed to protect, against surge voltages due to lightning, terminals equipment connected to industrial buses, telecom lines or datalines. These surge protectors must be installed on symmetrical DIN rail and are available for most of the transmission lines: line voltage from 6 to 170V, bitrate up to 10 Mbit/s. These products are 1-pair surge protectors with removable module for easy maintenance.
Select another reference:
DLAH-06D3
DLAH-06DBC
DLAH-12D3
DLAH-170
DLAH-24D3
DLAH-32D3
DLAH-48D3
Electrical Properties
Mechanical Properties
Norms
Schemas
Network
4-20 mA
Nominal line voltage
Un
24 V
Max. DC operating voltage
Uc
28 Vdc
Max. frequency
f max.
> 3 MHz
Max. discharge current
Imax
20 kA
Line inductance
10uH
Protection level
Up
40 V
Line/Line Nominal discharge current
In L/L
5 kA
Line/Ground Nominal discharge current
In L/PE
5 kA
Line resistance
0 Ohm
Technology
GDT+Clamping diode
SPD configuration
1-pair+shielded
Connection to Network
By screw terminal: cross section 0.4-1.5mm²
Format
Plug-in DIN box
Mounting
Symmetrical rail 35 mm (EN 60715)
Housing material
Thermoplastic UL94 V-0
Protection rating
IP20
Failsafe mode
Short-circuit - transmision cut-off - fault mode 2
Spare module(s)
DLAHM-24D3
Dimensions
See diagram
Standards compliance
IEC 61643-21 / EN 61643-21 / UL497A
×
