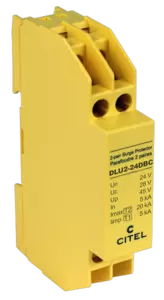

2-pair monobloc Data surge protector

DLU2-24DBC
Part Number: 640433
DLU2-24DBC
  • For DIN rail mounting
  • Monobloc housing
  • 2-pair
  • Un: 24 V
  • IEC 61643-21 compliance
  • UL497A

DLU2 surge protectors are designed to protect, against surge voltages due to lightning, terminals equipment connected to industrial buses, telecom lines or datalines. These surge protectors must be installed on symmetrical DIN rail and are available for most of the transmission lines: line voltage from 6 to 170V, bitrate up to 10 Mbit/s. These products are 2-pair surge protectors and are made with DIN rail monobloc enclosure


Network
24 V line, High bitrate
Nominal line voltage
Un 24 V
Max. DC operating voltage
Uc 28 Vdc
Max. frequency
f max. > 20 MHz
Insertion loss
< 1 dB
Max. load current
IL 300 mA
Max. discharge current
max. withstand @ 8/20 µs by pole
Imax 20 kA
Line inductance
No
Protection mode(s)
Common/Differential mode
Protection level
Following the test category C3 (IEC61643-21) - Line/Line
Up 50 V
Max. capacitance
C < 50 pF
Impulse current
2 x 10/350µs Test - D1 Category
Iimp 5 kA
Nominal discharge current
C2 Category
In 5 kA
Line resistance
< 4.7 Ohm
Network type
Telecom
Technology
GDT+Clamping diode
SPD configuration
2 pairs
Connection to Network
By screw terminal - cross section 1.5-2.5mm²
Format
DIN box
Mounting
Symmetrical rail 35 mm (EN 60715)
Housing material
Thermoplastic UL94 V-0
Operating temperature
Tu -40/+85°C
Protection rating
IP20
Failsafe mode
Short-circuit
Disconnection indicator
Transmission interrupt - default mode 2
Remote signaling of disconnection
No
Dimensions
See diagram
Weight
0.063 kg
Standards compliance
IEC 61643-21 / EN 61643-21 / UL497A
Certification
UL 497B (pending)
