AC Power
Accessories

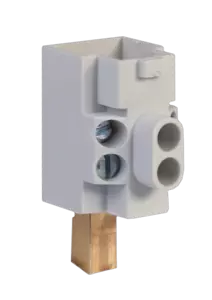

KN T 1316I
Screw terminal for 'V' connection
KN T 1316I
Part Number
151000
'V' connection screw terminal for SPD
Improved connection for better efficiency
2 x 35 mm² wire connection
Adapted to DAC/DDC surge protectors
Datasheet
Installation Sheet
Tender specifications
Contact Us
The KN T 1316I was developed to improve the wiring of DS-series SPD. This device enables an efficient and safe "V" wiring of a DS Surge Protective Device (SPD). The "V" wiring is highly recommended to avoid voltage drops and to improve the parallel connection. The KN T 1316I fits easily onto the screw terminal of the SPD and enables the correct connection of 3 conductors up to 16 mm². Also ideal for connecting 2-strings in photovoltaic systems in combination with DS50PV, DS50VGPV and DS60VGPV.
Select another reference:
DDT16
DSDT16
KN T 1316I
Electrical Properties
Mechanical Properties
Schemas
Max. load current
@25°C
IL
32 A
Mounting
On DS range terminal
Housing material
Polycarbonate UL94 V-0

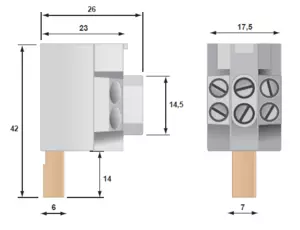

Dimensions
See diagram
Contacts
Brass
Mini-max. cross section
2.5 - 35 mm² (13-2 AWG)
Weight
0.042 kg
×
Description:
Screw terminal for 'V' connection
CITEL
Reference:
KN T 1316I
Part Number:
151000
Or equivalent
