Kit: Surge protector + Fuse

Part Number: 64201
Protection KIT DAC1-13S-30-440
Protection KIT DAC1-13S-30-440
Protection KIT DAC1-13S-30-440
Protection KIT DAC1-13S-30-440
  • Protection kit for AC applications
  • For 230/400 V TT/TNS power systems
  • Type 1+2 combined SPD (DAC1-13S series)
  • Fuse holder & backup fuse 22x58 mm (SFD1 series)
  • With remote signaling and indicator
  • Easy to install
  • Certified according to IEC 61643-11, EN 61643-11 (SPD)
  • Compliant with EN 60269-1/EN 60269-2/IEC 60269-1/IEC 60269-2 (fuse)
  • Compliant with UL1449 ed. 5 (SPD)

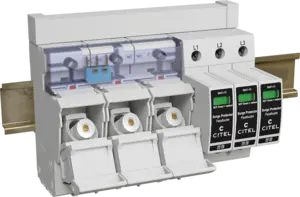

The CITEL Protection KIT 1-13 is a complete solution for protecting AC applications, designed for situations where the system’s main fuse is larger than what CITEL approves for surge protection. The pre-fuse safely isolates the SPD when short-circuit currents flow, but does not trip falsely in response to normal inrush currents caused by lightning or switching operations. This complete solution consists of a compact Type 1 surge protection device (from the DAC1-13 series), the SFD1 fuse holder with matching SFD fuses to protect the Type 1 SPD, and a custom-designed phase busbar for minimal cable lengths. Integrated fuse indicators and a potential-free changeover contact (FM) enable direct integration into the building management system.
