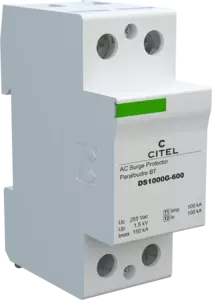

Type 1+2 AC surge protector
DS1000G-600
Type 1 N/PE surge protector
DS1000G-600
Part Number:
1647
Type 1 N/PE surge protector
Iimp : 100 kA (10/350µs)
Imax : 150 kA (8/20µs)
Compatible with DS250 and DS150 series
IEC 61643-11 compliance
Datasheet
Tender specifications
Contact Us
Select another reference:
DS1000G-600
Electrical Properties
Mechanical Properties
Norms
Schemas
SPD type
N/PE
Network
230/400 V
Max. AC operating voltage
Uc
255 Vac
Temporary Over Voltage (TOV) Charasteristics - 5 sec.
Without disconnection
UT
335 Vac withstand
Temporary Over Voltage (TOV) Charasteristics - 120 mn
Without disconnection or with safety disconnection
UT
440 Vac withstand
Temporary Over Voltage N/PE (TOV HT)
Without disconnection or with safety disconnection
UT
1200 V/300A/200 ms withstand
Residual Current
Leakage current to Ground
Ipe
None
Follow current
If
Yes
Follow current interrupting capability
Ifi
> 100 A
Nominal discharge current
15 x 8/20 µs impulses
In
100 kA
Max. discharge current
max. withstand @ 8/20 µs by pole
Imax
100 kA
Impulse current by pole
max. withstand 10/350µs by pole
Iimp
150 kA
Protection level
@ In (8/20µs)
Up
1.5 kV
Connection to Network
By screw terminals: 6-35mm² / by bus
Format
Monobloc modular box
Mounting
Symmetrical rail 35 mm (EN 60715)
Housing material
Thermoplastic UL94 V-0
Operating temperature
Tu
-40/+85°C
Protection rating
IP20
Outdoor application
No
Dimensions
See diagram
Standards compliance
IEC 61643-11 / EN 61643-11
×
Description:
Type 1 N/PE surge protector
Standards compliance:
IEC 61643-11 / EN 61643-11
SPD type :
N/PE
Network:
230/400 V
Max. AC operating voltage :
255 Vac
Residual Current :
None
Max. discharge current :
100 kA
Impulse current by pole :
150 kA
Protection level :
1.5 kV
