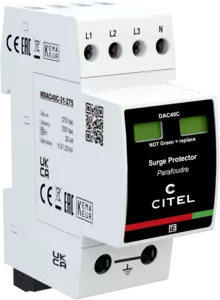

Type 2 AC surge protector - 3-phase+N

DAC40CS-31-275
Part Number 821520222
DAC40CS-31-275
  • Compact, multipole type 2
  • Conductivity per pole: In= 20 kA; Imax= 40 kA
  • Protection modes - common and/or differential
  • Safe disconnect device
  • Transverse / longitudinal voltage protection
  • Energetically coordinated
  • Pluggable protection module
  • Remote signalling
  • Conforms to IEC 61643-11 / EN 61643-11 and UL1449 ed.5
Contact Us
The DAC40CS series are compact type 2 or type 3 surge protection devices designed to protect single or multi-phase systems. They are equipped with a pluggable protection module and are designed for DIN rail mounting. The DAC40CS series are available for supply voltages of 120V, 230V or 400V and all common mains types (TN, TNC, TNS, TT). The protection circuit consists of high performance varistors with a thermal break and error signaling. A potential-free contact serves for the connection of a remote signaling.
SPD type
IEC 2
Network
 230/400 V
AC system
 TT-TNS
Max. AC operating voltage
Uc 275 Vac
Temporary Over Voltage (TOV) Characteristics - 5 sec.
Without disconnection
 UT 335 Vac withstand
Temporary Over Voltage (TOV) Characteristics - 120 mn
Without disconnection or with safety disconnection
 UT 440 Vac disconnection
Temporary Over Voltage N/PE (TOV HT)
Without disconnection or with safety disconnection
 UT 1200 V/300A/200 ms withstand
Residual Current
Leakage current to Ground
 Ipe None
Follow current
If None
Nominal discharge current
15 x 8/20 µs impulses
 In 20 kA
Max. discharge current
max. withstand @ 8/20 µs by pole
 Imax 40 kA
Total Maximum discharge current
max. total withstand @ 8/20 µs
Imax Total 40 kA
Protection mode(s)
 L/PE and N/PE
Protection level L/N
@ In (8/20µs)
 Up L/N 1.25 kV
Protection level N/PE
@ In (8/20µs)
 Up N/PE 1.5 kV
Admissible short-circuit current
 Isccr 10 000 A
Network type
 AC
Technology
 MOV+GDT
SPD configuration
 3-phase+Neutral
Connection to Network
 By screw terminals: L/N = 1.5-10mm² (16mm² rigid) or PE = 2.5-25mm² (35mm² rigid)
Format
 Plug-in modular box
Plugable
 Yes
Mounting
 Symmetrical rail 35 mm (EN 60715)
Housing material
 Thermoplastic UL94 V-0
Operating temperature
 Tu -40/+85°C
Protection rating
 IP20
Failsafe mode
 Disconnection from AC network
Disconnection indicator
 2 mechanical indicators - Red/Green
Spare module(s)
 MDAC40C-31-275
Remote signaling of disconnection
 Output on changeover contact
Wiring for remote signaling
 1.5 mm² max.
Max. Voltage/Current for remote signaling
 250 V / 0.5 A (AC) / 30 V / 3 A (DC)
Dimensions
 See diagram - 2TE (EN43880)
Weight
 0.180 kg
Standards compliance
 IEC 61643-11 / EN 61643-11 / UL1449 ed.5
Certification
 KEMA
Thermal disconnector
 Internal
Installation ground fault breaker
 Type 'S' or delayed
Back-up protection device
50 A min. - 125 A max. - Fuses Type gG
