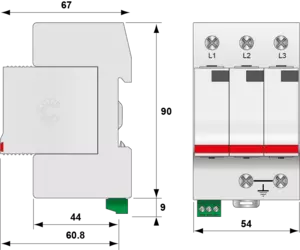

Type 2 AC surge protector
DS43S-120
Type 2 AC surge protector - 3-phase
DS43S-120
Part Number
461623
Discover our latest innovation : the
DAC50S-30-150
Type 2 AC Multipolar surge protector
In : 20 kA
Imax total : 120 kA
Pluggable module for each phase
Remote signaling
NF EN 61643-11, IEC 61643-11 compliance
UL1449 ed.5
Datasheet
ULCertificate_DS43S-120%.pdf
Installation Sheet
Tender specifications
Contact Us
used mainly for primary protection of single and 4- phase networks at the main electrical panel. They provide common-mode or common and differential mode. This SPD is based on high energy varistor equipped with thermal disconnector and failure indicator, to comply with standards. The DS40 surge protectors are designed to be used in a multipolar configuration to protect single-phase, 3-phase or 3-phase+Neutral AC networks.They are sometimes associated with dedicated N/PE surge protector based on gas tube technology.
Select another reference:
DS41S-120
DS41S-230
DS41S-280
DS41S-690
DS42S-120/G
DS42S-230
Electrical Properties
Mechanical Properties
Norms
Deconnector
Schemas
SPD type
2
Network
120/208 V 3-phase
AC system
TNC
Nominal line voltage
Un
120 Vac
Max. AC operating voltage
Uc
150 Vac
Temporary Over Voltage (TOV) Characteristics - 5 sec.
Without disconnection
UT
180 Vac withstand
Temporary Over Voltage (TOV) Characteristics - 120 mn
Without disconnection or with safety disconnection
UT
230 Vac disconnection
Residual Current
Leakage current to Ground
Ipe
< 1.5 mA
Operating current
Continious current at Uc
Ic
0.5 mA
Follow current
If
None
Nominal discharge current
15 x 8/20 µs impulses
In
20 kA
Max. discharge current
max. withstand @ 8/20 µs by pole
Imax
40 kA
Total Maximum discharge current
max. total withstand @ 8/20 µs
Imax Total
120 kA
Connection mode(s)
L/PE
Protection mode(s)
Common mode
Residual voltage at 5 kA
@ 5 kA (8/20µs)
Up-5kA
0.6 kV
Protection level L/PE
@ In (8/20µs)
Up L/PE
1.2 kV
Residual voltage at 10 kA
@ 8/20µs
Up-10kA
0.7 kV
Admissible short-circuit current
Isccr
25 000 A
Technology
MOV
SPD configuration
3-phase
Connection to Network
By screw terminals: 2.5-25mm² / by bus
Format
Plug-in modular box
Mounting
Symmetrical rail 35 mm (EN 60715)
Housing material
Thermoplastic UL94 V-0
Operating temperature
Tu
-40/+85°C
Protection rating
IP20
Failsafe mode
Disconnection from AC network
Disconnection indicator
1 mechanical indicator by pole
Spare module(s)
DSM40-120
Remote signaling of disconnection
Output on changeover contact
Dimensions
See diagram
Weight
0.255 kg
Standards compliance
IEC 61643-11 / EN 61643-11 / UL1449 ed.5
Certification
CSA / UL Listed
Thermal disconnector
Internal
Installation ground fault breaker
Type 'S' or delayed
Back-up protection device
Fuses type gG - 50 A
×
Description:
Type 2 AC surge protector - 3-phase
Standards compliance:
IEC 61643-11 / EN 61643-11 / UL1449 ed.5
Certification:
CSA / UL Listed
Technology:
MOV
SPD configuration:
3-phase
Remote signaling of disconnection:
Output on changeover contact
SPD type :
2
Network:
120/208 V 3-phase
AC system:
TNC
Max. AC operating voltage :
150 Vac
Residual Current :
< 1.5 mA
Max. discharge current :
40 kA
Total Maximum discharge current :
120 kA
Admissible short-circuit current:
25 000 A
