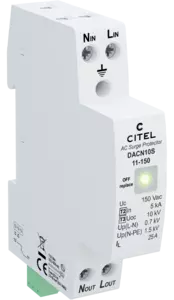

Compact single-phase type 2 (or 3) surge protector - 230 V - Monobloc

DACN10S-11-150
DACN10S-11-150
Part Number: 70111012
  • Cost effective single-phase surge protector
  • Type 2+3 monobloc compact
  • In/Imax: 5 kA/10 kA
  • Max. load current: 25A
  • 2-port configuration (series mounting)
  • Remote signaling
  • EN 61643-11, IEC 61643-11 compliance



SPD type 2+3
Network 120 Vac single-phase
AC system TT-TN
Max. AC operating voltage Uc 150 Vac
Max. load current IL 25 A
Temporary Over Voltage (TOV) Charasteristics - 5 sec. UT 180 Vac withstand
Temporary Over Voltage (TOV) Charasteristics - 120 mn UT 230 Vac disconnection
Temporary Over Voltage N/PE (TOV HT) UT 1200 V/300A/200 ms breaker disconnection
Residual Current Ipe None
Nominal discharge current In 5 kA
Max. discharge current Imax 10 kA
Total Maximum discharge current Imax Total 20 kA
Withstand on Combination waveform IEC 61643-11 Uoc 10 kV
Protection level L/N Up L/N 0.7 kV
Protection level N/PE Up N/PE 1.5 kV
Admissible short-circuit current Isccr 10 000 A
SPD configuration Single phase
Connection to Network by screw terminals: 1.5-10mm²
Mounting Symmetrical rail 35 mm (EN60715)
Housing material Thermoplastic UL94 V-0
Operating temperature Tu -40/+85°C
Protection rating IP20
Failsafe mode Disconnection SPD
Disconnection indicator Green led OFF
Remote signaling of disconnection output on NC contact
Wiring for remote signaling 1.5 mm² max.
Max. Voltage/Current for remote signaling 250 V / 0.5 A (AC) / 30 V / 2 A (DC)
Dimensions See diagram - 1TE (DIN43880)
Weight 0.092 kg
Standards compliance IEC 61643-11 / EN 61643-11 / UL1449 ed.4
Thermal disconnector Internal
Installation ground fault breaker Type 'S' or delayed
Fuses Fuses type gG - 25A
