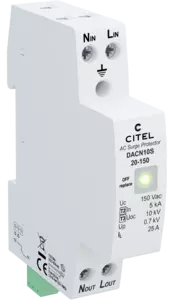

Compact single-phase type 2 (or 3) surge protector - Monobloc

DACN10S-20-150
Part Number 70113012
DACN10S-20-150
  • Cost effective single-phase surge protector
  • Type 2 or 3 monobloc compact
  • In/Imax: 5 kA/10 kA
  • Max. load current: 25A
  • 2-port configuration (series mounting)
  • Remote signaling
  • EN 61643-11, IEC 61643-11, UL1449 ed.5 compliance

DACN10S AC surge protector is used for the 'secondary' protection of the single-phase networks against the surge voltages creating by lightning. DACN10S is equipped with an internal thermal safety which will disconnet the unit from the AC network in case of end of life. Regarding the failsafe mode this surge protector is equipped with the option of disconnection and AC line cut-off. This disconnection will be indicate by the turn on of the red led in the front. Very compact, the DACN10S surge protector must be installed close by the equipment to protect, downstream a 'primary' surge protector. DACN10S provides both a common and differential mode protection.


SPD type
2 (or 3)
Network
120 V single-phase
AC system
TN
Max. AC operating voltage
Uc 150 Vac
Max. load current
@25°C
IL 25 A
Temporary Over Voltage (TOV) Characteristics - 5 sec.
Without disconnection
UT 335 Vac withstand
Temporary Over Voltage (TOV) Characteristics - 120 mn
Without disconnection or with safety disconnection
UT 230 Vac disconnection
Temporary Over Voltage N/PE (TOV HT)
Without disconnection or with safety disconnection
UT 1200 V/300A/200 ms breaker disconnection
Residual Current
Leakage current to Ground
Ipe None
Nominal discharge current
15 x 8/20 µs impulses
In 5 kA
Max. discharge current
max. withstand @ 8/20 µs by pole
Imax 10 kA
Total Maximum discharge current
max. total withstand @ 8/20 µs
Imax Total 20 kA
Withstand on Combination waveform IEC 61643-11
Class III test: 1.2/50µs - 8/20µs
Uoc 10 kV
Protection level N/PE
@ In (8/20µs)
Up N/PE 0.7 kV
Protection level L/PE
@ In (8/20µs)
Up L/PE 0.7 kV
Admissible short-circuit current
Isccr 10 000 A
SPD configuration
Single phase
Connection to Network
By screw terminals: 1.5-10mm²
Plugable
No
Mounting
Symmetrical rail 35 mm (EN 60715)
Housing material
Thermoplastic UL94 V-0
Operating temperature
Tu -40/+85°C
Protection rating
IP20
Outdoor application
No
Failsafe mode
Disconnection from AC network
Disconnection indicator
Green LED OFF
Remote signaling of disconnection
output on NC contact
Wiring for remote signaling
1.5 mm² max.
Max. Voltage/Current for remote signaling
250 V / 0.5 A (AC) / 30 V / 2 A (DC)
Dimensions
See diagram - 1TE (EN43880)
Weight
0.0917 kg
Standards compliance
IEC 61643-11 / EN 61643-11 / UL1449 ed.5
Thermal disconnector
Internal
Installation ground fault breaker
Type 'S' or delayed
Back-up protection device
Fuses type gG - 25A
