AC/Data surge protector for Led lighting system Class 2

MLP2-230S-P/RS
Part Number 721242
MLP2-230S-P/RS

Specially developed spd with combined protection for 2-phase power supply (control phase):

  • Many variants available depending on application
  • With screw terminals or cable wiring
  • IP65 versions
  • For protection class I or II application
  • Developed for Uoc: 10 kV and Imax: 10 kA for highest outdoor requirements according to IEEE & ANSI
  • Optical error signalling
Contact Us

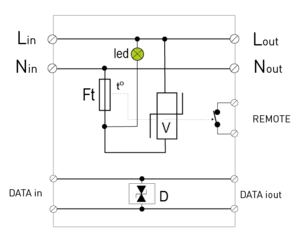

The MLP range is a comprehensive series of AC surge protectors dedicated to LED lighting system. Some versions are equipped with an extra dataline surge protection (RS485 or DALI) in order to provide a full solution for LED systems with transmission features. By this way the MLP range is able to provide all the existing configurations with an efficient solution . MLP surge protectors are based on a powerful association of MOV and GDT components, able to protect LED system against huge surges without disconnection. In the worse case, the SPD will fail in safety condition. Indication of the SPD failure is performed through power supply cut off and/or through remote signaling feature.
SPD type
2+3
Network
 AC: 220-240 V single-phase I Dataline: RS485 or 0-10V
AC system
 TT-TN
Nominal line voltage
 Un 230-277 Vac
Nominal line voltage
 Un 12 V
Max. AC operating voltage
Uc AC : 305 Vac I DATA : 15 Vac
Max. frequency
 f max. DATA : 10 MHz
Insertion loss
 < 1dB
Max. load current
@25°C
 IL AC : 2.5 A I DATA : 300mA
Temporary Over Voltage (TOV) Characteristics - 5 sec.
Without disconnection
 UT 335 Vac withstand
Temporary Over Voltage (TOV) Characteristics - 120 mn
Without disconnection or with safety disconnection
 UT 440 Vac disconnection
Residual Current
Leakage current to Ground
 Ipe None
Follow current
If None
Nominal discharge current
15 x 8/20 µs impulses
 In AC : 5kA I DATA : 5 kA
Nominal discharge current
15 x 8/20 µs impulses
 In 5 kA
Max. discharge current
max. withstand @ 8/20 µs by pole
 Imax AC : 10 kA I DATA : 200 kA
Total Maximum discharge current
max. total withstand @ 8/20 µs
Imax Total AC : 20 kA
Withstand on Combination waveform IEC 61643-11
Class III test: 1.2/50µs - 8/20µs
 Uoc 10 kV / 5 kA
Withstand on overvoltages IEEE C62.41.1
 10 kV / 10 kA
Protection mode(s)
 Differential Mode
Protection level
@ In (8/20µs)
 Up DATA : 30 V
Protection level L/N
@ In (8/20µs)
 Up L/N 1.5 kV
Protection level L/PE
@ In (8/20µs)
 Up L/PE 1.5 kV
Admissible short-circuit current
 Isccr 10 000 A
Network type
 AC/Data
Technology
 MOV+GDT
Connection to Network
 By screw terminal: 1.5mm² max.
Mounting
 On plate
Housing material
 Thermoplastic UL94 V-0
Operating temperature
 Tu -40/+85°C
Protection rating
 IP20
Failsafe mode
 Disconnection and AC continuity
Disconnection indicator
 Green LED OFF and remote signaling
Voltage/operating indicator
 Green Led ON
Remote signaling of disconnection
 yes : output on contact NO
Dimensions
 See diagram
Standards compliance
 IEC 61643-21 / EN 61643-21 / UL1449 ed.5
Thermal disconnector
 Internal
Installation ground fault breaker
 Type 'S' or delayed
