PV-DC-Junction box
Part Number: 157626
GAK12.K2x10.K1x10.DP40-1-XS
- Generator junction box for 12 MPP tracker / 2 strings
- Integrated surge protection device - DPVN40C-21Y-1200 (Type 2+3)
- Protection class IP65
- Connection via spring terminals (6-10mm²)
With the generator junction boxes of the GAK12 series, CITEL offers a solution to protect the DC side of any photovoltaic (PV) system with 12-MPPT and system voltages (Ucpv) up to 1200 Vdc against the effects of lightning and surge impulses. Depending on the configuration, the GAK12 are optimized for PV systems of lightning protection class III/IV with ≥ 4 down conductors according to Table 2, VDE 0185-305 Supplement 5, Fpr TS 50539-12 : 2013 and ground-mounted PV systems.
Datasheet|
SPD type
|
IEC | 2+3 |
|
Network
|
PV network 1000 Vdc |
|
|
Nominal DC voltage
|
Un-dc | 1000 Vdc |
|
Max. PV operating voltage
|
Ucpv | 1200 Vdc |
|
Rated insulation voltage
Ui
|
Ui | 1000 Vdc |
|
Rated current
InA
|
InA | 40 A |
|
Rated string current
|
InC | 20 A |
|
Input / per MPPT
|
Spring clamp terminals / 4x16mm² |
|
|
Output / per MPPT
|
Spring terminals / 2x 6-16mm² |
|
|
Ground connection terminal
|
Spring clamp terminals / 16mm² |
|
|
Cable gland
|
8x M40* (Ø 16-28mm) / 2x M20 (Ø 6-13mm) / (* - with multiple sealing inserts, conductor outer diameter Ø, max. 6.9 mm) |
|
|
Housing material
|
UV and ozone resistant, fiberglass reinforced polycarbonate |
|
|

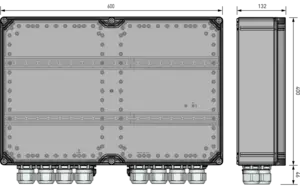

Dimensions
|
WxHxD (mm): 130 x 180 x 111 |
|
|
Humidity
|
Indoor: max. 50% at +40°C, max. 90% at 20°C (non-condensing) / Outdoor: 95% for a short time at +25°C (non-condensing) |
|
Standards compliance
|
DIN EN 50539-11 |
