PV-DC-Junction box

GAK2.K4(6)x16.K2x16.51VG-12
Part Number 158209
GAK2.K4(6)x16.K2x16.51VG-12

Generator junction box for 2 MPP tracker / 4 strings Integrated surge protection device (2x DS50VGPVS-1000G/12KT1) Protection class IP65 Connection via spring terminals

Contact Us
With the generator junction boxes of the GAK2 series, CITEL offers a solution to protect photovoltaic systems of any kind against the effects of lightning and overvoltages. The GAK2 series is designed to protect 2 MPP trackers and maximum system voltages (Ucpv) up to 1200 Vdc. Depending on the configuration, the GAK2 meet the normative requirements for all types of buildings with or without external lightning protection system up to lightning protection class I (Iimp = 12.5 kA / pole (10/350)) and are also available in versions with string fuses and disconnectors.
SPD type
1+2
Network
 PV network 1000 Vdc
Nominal DC voltage
 Un-dc 1000 Vdc
Max. PV operating voltage
 Ucpv 1200 Vdc
Rated insulation voltage
Ui
 Ui 1000 Vdc
Rated current
InA
 InA 2x 60 A
Rated string current
 InC 2x 40 A
Weight
 3.8 kg
Input / per MPPT
 Spring clamp terminals / 4x16mm²
Output / per MPPT
 Spring terminals / 2x16mm²
Ground connection terminal
 Spring clamp terminals / 16mm²
Cable gland
 Metric / 30x M16 (Ø 5-7mm)
Housing material
 UV and ozone resistant, fiberglass reinforced polycarbonate with semi-transparent cover

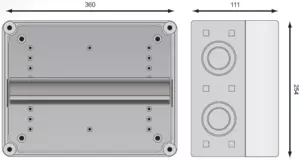

Dimensions
 WxHxD (mm): 360 x 254 x 111
Ambient temperatures
 Indoor: -5°C to max. +40°C (+35°C 24h average) / Outdoor: -25°C to max. +40°C (+35°C 24h average)
Humidity
 Indoor: max. 50% at +40°C, max. 90% at 20°C (non-condensing) / Outdoor: 95% for a short time at +25°C (non-condensing)
Protection rating
 IP 65
Protection class
 Class II
Impact resistance
 IK 8
Pressure compensation element
 Existing
Standards compliance
 DIN EN 50539-11 / DIN EN IEC 61439-2
