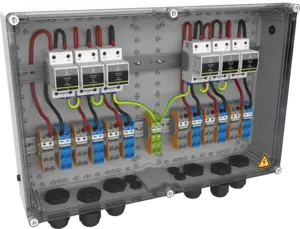

PV-DC-Junction box
Part Number: 157608
GAK6.K4x16.K1x16.DP6-1-XS
- Generator junction box for 6 MPP trackers / 4 strings
- Integrated surge protection (type 1+2+3 - DPVN1-6C-21Y-1200)
- Protection class IP65
- Connection via spring terminals
- Screw connections permanently installed
With the GAK6-XS series generator connection boxes, CITEL offers a solution for protecting photovoltaic systems against the effects of lightning and overvoltage. The GAK6-XS series is designed to protect 6 MPP trackers and maximum system voltages (Ucpv) up to 1200 Vdc. Depending on the configuration, the GAK6-XS is optimised for PV systems on buildings in lightning protection class III/IV with ≥ 4 down conductors according to Table 2, VDE 0185-305 Supplement 5, Fpr TS 50539-12 : 2013 and ground-mounted PV systems.
Datasheet|
SPD type
|
IEC | 1+2+3 |
|
Network
|
PV network 1000 Vdc |
|
|
Nominal DC voltage
|
Un-dc | 1000 Vdc |
|
Rated insulation voltage
Ui
|
Ui | 1000 Vdc |
|
Rated current
InA
|
InA | 50 A |
|
Rated string current
|
InC | 25 A |
|
Housing material
|
UV and ozone resistant, glass fibre reinforced polycarbonate |
|
|
Dimensions
|
See diagram |
|
|
Input / per MPPT
|
Spring clamp terminals / 4x 6-16mm² |
|
|
Output / per MPPT
|
Spring terminals / 1x 6-16mm² |
|
|
Ground connection terminal
|
Screw terminal 6-35mm² |
|
|
Cable gland
|
2x M16 (Ø 4,5-10 mm) / 2x M20 (Ø 6-13 mm) / 1x M25 (Ø 9 - 17 mm) |
|
|
Housing material
|
UV and ozone resistant, fiberglass reinforced polycarbonate with semi-transparent cover |
|
|
Dimensions
|
WxHxD (mm): 130 x 180 x 111 |
|
|
Ambient temperatures
|
Indoor: -5°C to max. +40°C (+35°C 24h average) / Outdoor: -25°C to max. +40°C (+35°C 24h average) |
|
|
Humidity
|
Indoor: max. 50% at +40°C, max. 90% at 20°C (non-condensing) / Outdoor: 95% for a short time at +25°C (non-condensing) |
|
|
Protection rating
|
IP 65 |
|
|
Protection class
|
Class II |
|
|
Impact resistance
|
IK 8 |
|
|
Pressure compensation element
|
Existing |
|
Standards compliance
|
DIN EN 50539-11 / DIN EN IEC 61439-2 |
