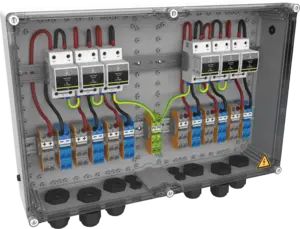

PV-DC-Junction box

GAK6.K4x16.K1x16.DP6VG-1-XS
Part Number 157609
GAK6.K4x16.K1x16.DP6VG-1-XS
With the generator junction boxes of the GAK1 series, CITEL offers a solution to protect photovoltaic systems against the effects of lightning and surges. The GAK1 series is designed for the protection of 1 MPP tracker and maximum system voltages (Ucpv) up to 1200 Vdc. Depending on the configuration, the GAK1-XS are optimised for PV systems on buildings of lightning protection class III/IV with ≥ 4 down conductors in accordance with Table 2, VDE 0185-305 Supplement 5, Fpr TS 50539-12 : 2013 and ground-mounted PV systems.
SPD type
1+2+3
Network
 PV network 1000 Vdc
Nominal DC voltage
 Un-dc 1000 Vdc
Rated insulation voltage
Ui
 Ui 1000 Vdc
Rated current
InA
 InA 50 A
Rated string current
 InC 25 A
Housing material
 UV and ozone resistant, glass fibre reinforced polycarbonate
Dimensions
 See diagram
Weight
 1.648 kg
Input / per MPPT
 Spring clamp terminals / 4x 6-16mm²
Output / per MPPT
 Spring terminals / 1x 6-16mm²
Ground connection terminal
 Screw terminal 6-35mm²
Cable gland
 2x M16 (Ø 4,5-10 mm) / 2x M20 (Ø 6-13 mm) / 1x M25 (Ø 9 - 17 mm)
Housing material
 UV and ozone resistant, fiberglass reinforced polycarbonate with semi-transparent cover
Dimensions
 WxHxD (mm): 130 x 180 x 111
Ambient temperatures
 Indoor: -5°C to max. +40°C (+35°C 24h average) / Outdoor: -25°C to max. +40°C (+35°C 24h average)
Humidity
 Indoor: max. 50% at +40°C, max. 90% at 20°C (non-condensing) / Outdoor: 95% for a short time at +25°C (non-condensing)
Protection rating
 IP 65
Protection class
 Class II
Impact resistance
 IK 8
Pressure compensation element
 Existing
Standards compliance
 DIN EN 50539-11 / DIN EN IEC 61439-2
