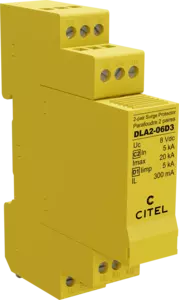

2-pair DIN rail plug-in Data surge protector

DLA2-06D3
Part Number 640111
DLA2-06D3
  • Din rail plug-in surge protector
  • 2-pair
  • Un: 6 V
  • Shield wire protection
  • Without line cut-off
  • IEC 61643-21 compliance
  • UL497B certified

DLA protect I&C, telecommunication equipment and data technology systems from lightning effects and surges. Designed for DIN rail mounting, these surge protectors can be used for all applications with voltages from 6 V to max. 170 V and transmission rates up to 10 Mbit/s and protect one (DLA) to two (DLA2) pairs with a plug-in protection module. The electrical circuit of the DLA consists of a combination of high-performance gas discharge tubes and fast-switching diodes for high discharge capacity and fast response behaviour. The shield connection is additionally earthed via a gas discharge tube. The earthing connection is conveniently made via the top-hat rail. When the plug-in module is unplugged, the transmission signal is not interrupted. Special versions: DLAH are protective devices for applications with higher current values, operating current for connected operating devices up to 2.4 A. DLAW is a version which interrupts the signal transmission when the protection module is pulled out. D3 types aim to realize fine protection and D2 types is specific for floating applicaiton.


Network
RS422
Nominal line voltage
Un 6 V
Max. DC operating voltage
Uc 8 Vdc
Max. frequency
f max. > 3 MHz
Max. load current
@25°C
IL 300 mA
Max. discharge current
max. withstand @ 8/20 µs by pole
Imax 20 kA
Line inductance
No
Protection level
@ In (8/20 µs)
Up L/L 20 V
Protection level
@ In (8/20 µs)
Up L/PE 20 V
Impulse current
2 x 10/350µs Test - D1 Category
Iimp 5 kA
Nominal discharge current
C2 Category
In 5 kA
Network type
Data Communication
Technology
GDT+Clamping diode
SPD configuration
2-pairs+shielded
Connection to Network
By screw terminal: cross section 0.5-2.5mm²
Format
Plug-in DIN box
Mounting
Symmetrical rail 35 mm (EN 60715)
Housing material
Thermoplastic UL94 V-0
Operating and storage temperature
-40/+85°C
Protection rating
IP20
Failsafe mode
Short-circuit
Disconnection indicator
Transmission interrupt - default mode 2
Spare module(s)
DLA2M-06D3
Dimensions
See diagram
Standards compliance
IEC 61643-21 / EN 61643-21 / UL497B
Certification
UL Listed
