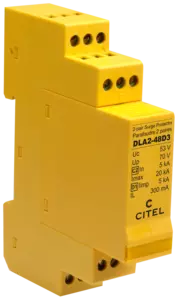

2-pair DIN rail plug-in Data surge protector

DLA2-48D3
Part Number 640312
DLA2-48D3
  • Din rail plug-in surge protector
  • 2-pair
  • Un: 48 V
  • Shield wire protection
  • Without line cut-off
  • IEC 61643-21 compliance
  • UL497B
Contact Us
DLA protect I&C, telecommunication equipment and data technology systems from lightning effects and surges. Designed for DIN rail mounting, these surge protectors can be used for all applications with voltages from 6 V to max. 170 V and transmission rates up to 10 Mbit/s and protect one (DLA) to two (DLA2) pairs with a plug-in protection module. The electrical circuit of the DLA consists of a combination of high-performance gas discharge tubes and fast-switching diodes for high discharge capacity and fast response behaviour. The shield connection is additionally earthed via a gas discharge tube. The earthing connection is conveniently made via the top-hat rail. When the plug-in module is unplugged, the transmission signal is not interrupted. Special versions: DLAH are protective devices for applications with higher current values, operating current for connected operating devices up to 2.4 A. DLAW is a version which interrupts the signal transmission when the protection module is pulled out. D3 types aim to realize fine protection and D2 types is specific for floating applicaiton.
Select another reference:
Network
 IDSN, 48 V line
Nominal line voltage
 Un 48 V
Max. DC operating voltage
 Uc 53 Vdc
Cut-off frequency
-3dB, 100 ohm system
 f max. \> 115 MHz
Max. load current @25°C
 IL 300 mA
Max. discharge current
max. withstand @ 8/20 µs by pole
 Imax 20 kA
Protection Level
C3 (10/1000μs), 300 applications@10 A, X-X (Line/Line)
 Up 70 V
Protection level
C3 (10/1000μs), 300 applications@10 A, X-C (Line/Earth)
 Up 70 V
Impulse current
2 x 10/350µs Test - D1 Category
 Iimp 5 kA
Nominal discharge current
C2 Category
 In 5 kA
Line resistance (± 10%)
 4.7 Ohm
Network type
 Data Communication
Technology
 GDT+TVS diode
SPD configuration
 2-pairs+shielded
Connection to Network
 By screw terminal: cross section 0.5-2.5mm²
Format
 Plug-in DIN box
Mounting
 Symmetrical rail 35 mm (EN 60715)
Housing material
 Thermoplastic UL94 V-0
Operating and storage temperature
 -40/+85°C
Protection rating
 IP20
Failsafe mode
 Short-circuit
Disconnection indicator
 Transmission interrupt - default mode 2
Spare module(s)
 DLA2M-48D3
Dimensions
 See diagram
Weight
 0.089 kg
Standards compliance
 IEC 61643-21 / EN 61643-21 / UL497B
Certification
 UL Listed
