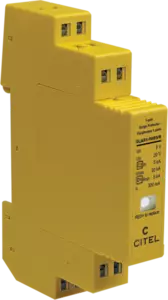

1-pair DIN rail plug-in Data surge protector

Part Number: 6415014
DLAS1-06D3/R
DLAS1-06D3/R
DLAS1-06D3/R
DLAS1-06D3/R
DLAS1-06D3/R
  • 1-pair Pluggable SPD for dataline
  • Visual indicator in failsafe behaviour
  • Without line cut-off
  • Line voltage 6 Vdc
  • Din rail mounting, spring contact
  • IEC/EN 61643-21 and UL497B compliance
DLAS1 surge protectors are designed to protect, against surge voltages due to lightning, terminals equipment connected to industrial buses, telecom lines or datalines. These surge protectors must be installed on symmetrical DIN rail and are available for most of the transmission lines: line voltage from 6 to 170V, bitrate up to 10 Mbit/s. These products are 1-pair surge protectors with removable module for easy maintenance.

Network

RS422
Nominal line voltage
 Un

6 V
Max. DC operating voltage
 Uc

8 Vdc
Max. frequency
 f max.

3 MHz
Max. load current @25°C
 IL

300 mA
Max. discharge current
max. withstand @ 8/20 µs by pole
 Imax

20 kA
Nominal Discharge Current, X-C (Line/Earth)
8/20µs Test x 10 - C2 Category
 In L/PE

5 kA
Protection Level
C3 (10/1000μs), 300 applications@10 A, Y-Y (Line/Line)
 Up

20 V
Protection Level
C3 (10/1000μs), 300 applications@10 A, Y-C (Line/Earth)
 Up

20 V
Impulse current
D1 (10/350μs), 2 applications, X-C (Line/Earth)
 Iimp

5 kA
Line/Line Nominal discharge current
C2 Category
In L/L

5 kA
Line resistance (± 10%)

4.7 Ohm

Technology

GDT+Clamping diode+PTC (thermal resistor) + Resistor
SPD configuration

1-pair+shielded
Connection to Network

By spring contact terminal: 0.5-4 mm²
Format

Plug-in DIN box
Mounting

Symmetrical rail 35 mm (EN 60715)
Housing material

Thermoplastic UL94 V-0
Operating temperature
 Tu

-40/+85°C
Protection rating

IP20
Failsafe mode

Opening line - transmision cut-off - fault mode 2
Disconnection indicator

Visual indicator is red
Spare module(s)

DLAS1M-06D3
Dimensions

See diagram

Standards compliance

IEC 61643-21 / EN 61643-21 / UL497B
Certification

SIL
Environmental standards

EU RoHS
