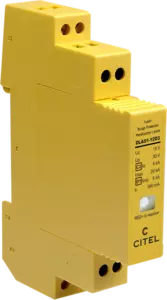

1-pair DIN rail plug-in Data surge protector

DLAS1-12D3
Part Number 6415021
DLAS1-12D3
  • 1-pair Pluggable SPD for dataline
  • Visual indicator in failsafe behaviour
  • Without line cut-off
  • Line voltage 12 Vdc
  • Din rail mounting, Screw terminals
  • IEC/EN 61643-21 and UL497B compliance

DLAS1 surge protectors are designed to protect, against surge voltages due to lightning, terminals equipment connected to industrial buses, telecom lines or datalines. These surge protectors must be installed on symmetrical DIN rail and are available for most of the transmission lines: line voltage from 6 to 170V, bitrate up to 10 Mbit/s. These products are 1-pair surge protectors with removable module for easy maintenance.


Network

RS232 - RS485

Nominal line voltage
Un

12 V

Max. DC operating voltage
Uc

15 Vdc

Max. frequency
f max.

3 MHz

Max. load current @25°C
IL

300 mA

Max. discharge current
max. withstand @ 8/20 µs by pole
Imax

20 kA

Protection Level
C3 (10/1000μs), 300 applications@10 A, X-X (Line/Line)
Up

30 V

Protection level
C3 (10/1000μs), 300 applications@10 A, X-C (Line/Earth)
Up

30 V

Impulse current
2 x 10/350µs Test - D1 Category
Iimp

5 kA

Line/Line Nominal discharge current
C2 Category
In L/L

5 kA

Nominal Discharge Current, X-C (Line/Earth)
8/20µs Test x 10 - C2 Category
In L/PE

5 kA

Line resistance (± 10%)

4.7 Ohm

Technology

GDT+Clamping diode+PTC (thermal resistor) + Resistor

SPD configuration

1-pair+shielded

Connection to Network

By screw terminal: cross section 0.5-2.5mm²

Format

Plug-in DIN box

Mounting

Symmetrical rail 35 mm (EN 60715)

Housing material

Thermoplastic UL94 V-0

Operating temperature
Tu

-40/+85°C

Protection rating

IP20

Failsafe mode

Opening line - transmision cut-off - fault mode 2

Disconnection indicator

Visual indicator is red

Spare module(s)

DLAS1M-12D3

Dimensions

See diagram

Standards compliance

IEC 61643-21 / EN 61643-21 / UL497B
