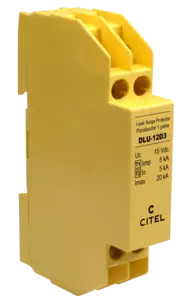

DIN Rail Telecom/Data surge protector
DLU-12D3
1-pair monobloc Data surge protector
DLU-12D3
Part Number:
640502
For DIN rail mounting
Monobloc housing
1-pair
Un: 12 V
Transmission an protection of shield wire
IEC 61643-21 compliance
UL497A
Datasheet
Tender specifications
Contact Us
DLU surge protectors are designed to protect, against surge voltages due to lightning, terminals equipment connected to industrial buses, telecom lines or datalines. These surge protectors must be installed on symmetrical DIN rail and are available for most of the transmission lines: line voltage from 6 to 170V, bitrate up to 10 Mbit/s. These products are 1-pair surge protectors and are made with DIN rail monobloc enclosure
Select another reference:
DLU-06D3
DLU-06DBC
DLU-12D3
DLU-12DBC
DLU-170
DLU-24D3
DLU-24DBC
DLU-48D3
DLU-48DBC
Electrical Properties
Mechanical Properties
Norms
Schemas
Network
Profibus-FMS, Interbus, FieldBus-H1, Batibus, RS232, RS485
Nominal line voltage
Un
12 V
Max. DC operating voltage
Uc
15 Vdc
Max. frequency
f max.
> 3 MHz
Insertion loss
< 1 dB
Max. load current
IL
300 mA
Max. discharge current
Imax
20 kA
Protection mode(s)
Common/Differential mode
Protection level
Up
30 V
Max. capacitance
C
< 50 pF
Impulse current
Iimp
5 kA
Nominal discharge current
In
5 kA
Line resistance
< 4.7 Ohm
Technology
GDT+Clamping diode
SPD configuration
1-pair+shielded
Connection to Network
By screw terminal - cross section 1.5-2.5mm²
Format
DIN box
Mounting
Symmetrical rail 35 mm (EN 60715)
Housing material
Thermoplastic UL94 V-0
Operating temperature
Tu
-40/+85°C
Protection rating
IP20
Failsafe mode
Short-circuit - transmision cut-off - fault mode 2
Disconnection indicator
Transmission interrupt
Dimensions
See diagram
Weight
0.061 kg
Standards compliance
IEC 61643-21 / EN 61643-21 / UL497 A
Certification
UL listed
×
