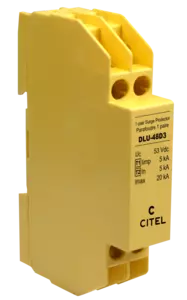

1-pair monobloc Data surge protector

DLU-48D3
Part Number 640504
DLU-48D3
  • For DIN rail mounting
  • Monobloc housing
  • 1-pair
  • Un: 48 V
  • Transmission an protection of shield wire
  • IEC 61643-21 compliance
  • UL497A

DLU surge protectors are designed to protect, against surge voltages due to lightning, terminals equipment connected to industrial buses, telecom lines or datalines. These surge protectors must be installed on symmetrical DIN rail and are available for most of the transmission lines: line voltage from 6 to 170V, bitrate up to 10 Mbit/s. These products are 1-pair surge protectors and are made with DIN rail monobloc enclosure


Network

48 V line, ISDN-T0, Profibus-PA

Nominal line voltage
Un

48 V

Max. DC operating voltage
Uc

53 Vdc

Max. frequency
f max.

3 MHz

Insertion loss

< 1 dB

Max. load current @25°C
IL

300 mA

Max. discharge current
max. withstand @ 8/20 µs by pole
Imax

20 kA

Protection mode(s)

Common/Differential mode

Protection Level
C3 (10/1000μs), 300 applications@10 A, X-X (Line/Line)
Up

70 V

Protection level
C3 (10/1000μs), 300 applications@10 A, X-C (Line/Earth)
Up

70 V

Max. capacitance
C

< 50 pF

Impulse current
2 x 10/350µs Test - D1 Category
Iimp

5 kA

Nominal discharge current
C2 Category
In

5 kA

Line resistance (± 10%)

4.7 Ohm

Technology

GDT+TVS diode

SPD configuration

1-pair+shielded

Connection to Network

By screw terminal - cross section 1.5-2.5mm²

Format

DIN box

Mounting

Symmetrical rail 35 mm (EN 60715)

Housing material

Thermoplastic UL94 V-0

Operating temperature
Tu

-40/+85°C

Protection rating

IP20

Failsafe mode

Short-circuit

Disconnection indicator

Transmission interrupt - default mode 2

Dimensions

See diagram

Weight

0.061 kg

Standards compliance

IEC 61643-21 / EN 61643-21 / UL497 A

Certification

UL 497B
