Type 2 AC surge protector - Single-phase

DS42S-280/G
Part Number 461131

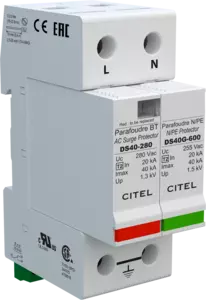

DS42S-280/G
  • Discover our latest innovation : the DAC50S-11-320
  • Type 2 AC Multipolar surge protector
  • In: 20 kA
  • Imax total: 40 kA
  • Pluggable module for each phase
  • Remote signaling
  • EN 61643-11, IEC 61643-11, UL1449 ed.5 compliance
Contact Us
used mainly for primary protection of single and 4- phase networks at the main electrical panel. They provide common-mode or common and differential mode. This SPD is based on high energy varistor equipped with thermal disconnector and failure indicator, to comply with standards. The DS40 surge protectors are designed to be used in a multipolar configuration to protect single-phase, 3-phase or 3-phase+Neutral AC networks.They are sometimes associated with dedicated N/PE surge protector based on gas tube technology.
Select another reference:
SPD type
IEC

2
Network

230 V single-phase
AC system

TT-TN
Nominal line voltage
 Un

230 Vac
Max. AC operating voltage
Uc

280 Vac
Temporary Over Voltage (TOV) Characteristics - 5 sec.
Without disconnection
 UT

335 Vac withstand
Temporary Over Voltage (TOV) Characteristics - 120 mn
Without disconnection or with safety disconnection
 UT

440 Vac disconnection
Temporary Over Voltage N/PE (TOV HT)
Without disconnection or with safety disconnection
 UT

1200 V/300A/200 ms withstand
Residual Current
Leakage current to Ground
 Ipe

None
Operating current
Continious current at Uc
 Ic

0.5 mA
Follow current
If

None
Nominal discharge current
15 x 8/20 µs impulses
 In

20 kA
Max. discharge current
max. withstand @ 8/20 µs by pole
 Imax

40 kA
Total Maximum discharge current
max. total withstand @ 8/20 µs
Imax Total

40 kA
Connection mode(s)

L/N and N/PE
Protection mode(s)

Common/Differential mode
Residual voltage at 5 kA
@ 5 kA (8/20µs)
 Up-5kA

0.9 kV
Protection level L/N
@ In (8/20µs)
 Up L/N

1.25 kV
Protection level N/PE
@ In (8/20µs)
 Up N/PE

1.5 kV
Residual voltage at 10 kA
@ 8/20µs
 Up-10kA

1.1 kV
Admissible short-circuit current
 Isccr

25 000 A
Technology

MOV+GDT
SPD configuration

Single phase
Connection to Network

By screw terminals: 2.5-25mm² / by bus
Format

Plug-in modular box
Mounting

Symmetrical rail 35 mm (EN 60715)
Housing material

Thermoplastic UL94 V-0
Operating temperature
 Tu

-40/+85°C
Protection rating

IP20
Failsafe mode

Disconnection from AC network
Disconnection indicator

1 mechanical indicator by pole
Spare module(s)

DSM40-280+DSM40G-600
Remote signaling of disconnection

Output on changeover contact
Dimensions

See diagram
Weight

0.18 kg
Standards compliance

IEC 61643-11 / EN 61643-11 / UL1449 ed.5
Certification

CSA / UL Listed
Thermal disconnector

Internal
Installation ground fault breaker

Type 'S' or delayed
Back-up protection device

Fuses type gG - 50 A
