Type 2 Wind Turbine surge protector
DS44S-690/Y
Type 2 AC surge protector - 4-phase
DS44S-690/Y
Part Number
461826
Type 2 surge protector for 690 Vac, 3-phase
In : 20 kA
Imax : 40 kA
Pluggable module for each phase,assembled by four single module
Remote signaling
NF EN 61643-11, IEC 61643-11,GB/T 18802.1compliance
UL1449 ed.11
Datasheet
Installation Sheet
Tender specifications
Contact Us
used mainly for primary protection of single and 4- phase networks at the main electrical panel. They provide common-mode or common and differential mode. This SPD is based on high energy varistor equipped with thermal disconnector and failure indicator, to comply with standards. The DS40 surge protectors are designed to be used in a multipolar configuration to protect single-phase, 3-phase or 3-phase+Neutral AC networks.They are sometimes associated with dedicated N/PE surge protector based on gas tube technology.
Select another reference:
DS41S-120
DS41S-230
DS41S-280
DS41S-690
DS42S-120/G
DS42S-230
DS42S-280/G
DS44S-280/G
DS44S-690/Y
Electrical Properties
Mechanical Properties
Norms
Deconnector
Schemas
SPD type
IEC
2
Network
690 V 3-phase+N
Nominal line voltage
Un
690 Vac
Max. AC operating voltage
Uc
1300 Vac
Temporary Over Voltage (TOV) Characteristics - 5 sec.
Without disconnection
UT
1000 Vac withstand
Temporary Over Voltage (TOV) Characteristics - 120 mn
Without disconnection or with safety disconnection
UT
1325 Vac disconnection
Operating current
Continious current at Uc
Ic
< 1 mA
Follow current
If
None
Nominal discharge current
15 x 8/20 µs impulses
In
20 kA
Max. discharge current
max. withstand @ 8/20 µs by pole
Imax
40 kA
Connection mode(s)
L/PE
Protection mode(s)
Common mode
Protection level L/PE
@ In (8/20µs)
Up L/PE
3.5 kV
Admissible short-circuit current
Isccr
25 000 A
Technology
MOV
SPD configuration
3-phase
Connection to Network
By screw terminals: 2.5-25mm² / by bus
Format
Plug-in modular box
Mounting
Symmetrical rail 35 mm (EN 60715)
Housing material
Thermoplastic UL94 V-0
Operating temperature
Tu
-40/+85°C
Protection rating
IP20
Failsafe mode
Disconnection from AC network
Disconnection indicator
1 mechanical indicator by pole
Spare module(s)
DSM40-690
Remote signaling of disconnection
Output on changeover contact

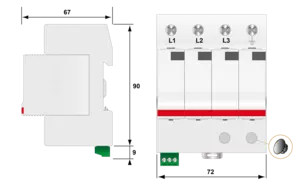

Dimensions
See diagram
Weight
0.443 kg
Standards compliance
IEC 61643-11 / EN 61643-11 / UL1449 ed.5
Certification
CSA / UL Listed
Thermal disconnector
Internal
Installation ground fault breaker
Type 'S' or delayed
Back-up protection device
Fuses type gG - 50 A
×
Description:
Type 2 AC surge protector - 4-phase
Standards compliance:
IEC 61643-11 / EN 61643-11 / UL1449 ed.5
Certification:
CSA / UL Listed
Technology:
MOV
SPD configuration:
3-phase
Remote signaling of disconnection:
Output on changeover contact
SPD type :
2
Network:
690 V 3-phase+N
Max. AC operating voltage :
1300 Vac
Max. discharge current :
40 kA
Admissible short-circuit current:
25 000 A
CITEL
Reference:
DS44S-690/Y
Part Number:
461826
Or equivalent
