Type 1+2 AC surge protector single-phase

DS132R-230
Part Number 571502
DS132R-230
  • Discover our latest innovation : the DAC1-13-20-275
  • Type 1 + 2 AC multipolar surge protector
  • In : 20 kA
  • Iimp total : 25 kA
  • Pluggable module for each phase
  • Remote signaling (option)
  • EN 61643-11, IEC 61643-11 compliance

The DS130R is an extreme duty Type 1+2 designed to protect the entrance of the electrical installation. The DS130R is a one-pole SPD and can be used in common mode or common and differential mode. DS130R AC surge protectors are designed to be connected in multi-pole configuration to protect single-phase, 3-phase and 3-phase+neutral AC networks. This SPD is DIN rail compatible.

Select another reference:

SPD type
IEC

1+2

Network

230 V single-phase

AC system

TN

Nominal line voltage
Un

230 Vac

Max. AC operating voltage
Uc

255 Vac

Temporary Over Voltage (TOV) Characteristics - 5 sec.
Without disconnection
UT

335 Vac withstand

Temporary Over Voltage (TOV) Characteristics - 120 mn
Without disconnection or with safety disconnection
UT

440 Vac disconnection

Operating current
Continious current at Uc
Ic

< 1 mA

Follow current
If

None

Nominal discharge current
15 x 8/20 µs impulses
In

20 kA

Max. discharge current
max. withstand @ 8/20 µs by pole
Imax

50 kA

Impulse current by pole
max. withstand 10/350µs by pole
Iimp

12.5 kA

Total lightning current
max. total withstand @ 10/350µs
Itotal

25 kA

Withstand on overvoltages IEEE C62.41.1

20 kV

Specific energy by pole
max. withstand 10/350 µs
W/R

40 kJ/ohm

Connection mode(s)

L/PE and N/PE

Protection mode(s)

Common mode

Protection level N/PE
@ In (8/20µs)
Up N/PE

1.3 kV

Protection level L/PE
@ In (8/20µs)
Up L/PE

1.3 kV

Admissible short-circuit current
Isccr

25 000 A

Technology

MOV

SPD configuration

Single phase

Connection to Network

By screw terminals: 2.5-25mm² / by bus

Format

Plug-in modular box

Mounting

Symmetrical rail 35 mm (EN 60715)

Housing material

Thermoplastic UL94 V-0

Operating temperature
Tu

-40/+85°C

Protection rating

IP20

Failsafe mode

Disconnection from AC network

Disconnection indicator

1 mechanical indicator by pole

Spare module(s)

DSM130R-230

Remote signaling of disconnection

option DS132RS-230 : output on changeover contact

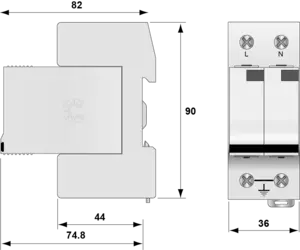

Dimensions

See diagram

Weight

0.297 kg

Standards compliance

IEC 61643-11 / EN 61643-11 / UL1449 ed.5

Certification
Thermal disconnector

Internal

Installation ground fault breaker

Type 'S' or delayed

Back-up protection device

Fuses Type gG - 125 A
