Type 1+2+3 AC surge protector

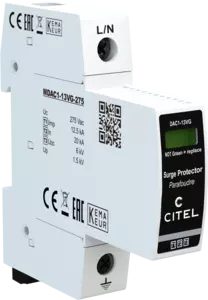

DAC1-13VGS-10-275
Type 1+2 AC surge protector - 1-pole
DAC1-13VGS-10-275
Part Number:
821730221
Type 1 + 2 + 3 AC surge protector
VG Technology
In : 20 kA
Iimp : 12.5 kA on 10/350µs impulse
No leakage current
Pluggable module for each phase
Remote signaling
Optimized to TOV
EN 61643-11, IEC 61643-11 certified
UL1449 ed.5 compliance
Datasheet
Installation Sheet
Tender specifications
Contact Us
The DAC1-13VG is an extreme duty Type 1+2+3 AC surge protector device designed to protect at the entrance of the electrical installation. This SPD is particularly useful in a high lightning density area where the risk of heavy surge current or even direct strike is high (eg: buildings equipped with lightning rods). The DAC1-13VG is one-pole SPD and can be used in common mode or common and differential mode. DAC1-13VG AC surge protectors are designed to be connected in multi-pole configuration to protect single-phase, 3-phase and 3-phase+Neutral AC networks, sometimes associated with a dedicated N/PE SPD.
Select another reference:
DAC1-13VGS-10-150
DAC1-13VGS-10-275
DAC1-13VGS-10-320
DAC1-13VGS-11-150
DAC1-13VGS-11-275
DAC1-13VGS-11-320
DAC1-13VGS-20-150
DAC1-13VGS-20-275
DAC1-13VGS-20-320
DAC1-13VGS-30-150
DAC1-13VGS-30-275
DAC1-13VGS-30-320
DAC1-13VGS-31-150
DAC1-13VGS-31-275
DAC1-13VGS-31-320
DAC1-13VGS-40-150
DAC1-13VGS-40-275
DAC1-13VGS-40-320
Electrical Properties
Mechanical Properties
Norms
Deconnector
Schemas
SPD type
1+2+3
Max. AC operating voltage
Uc
275 Vac
Temporary Over Voltage (TOV) Charasteristics - 5 sec.
UT
335 Vac withstand
Temporary Over Voltage (TOV) Charasteristics - 120 mn
UT
440 Vac withstand
Residual Current
Ipe
None
Follow current
If
None
Nominal discharge current
In
20 kA
Max. discharge current
Imax
50 kA
Impulse current by pole
Iimp
12.5 kA
Withstand on Combination waveform IEC 61643-11
Uoc
6 kV
Specific energy by pole
W/R
40 kJ/ohm
Protection level
Up
1.5 kV
Residuel voltage at 5 kA
Up-5kA
0.7 kV
Admissible short-circuit current
Isccr
50 000 A
Network type
AC
Technology
VG Technology (MOV+GSG)
SPD configuration
1-pole
Connection to Network
By screw terminals: 2.5-25mm² (35mm² rigid)
Format
Plug-in modular box
Plugable
Yes
Mounting
Symmetrical rail 35 mm (EN 60715)
Housing material
Thermoplastic UL94 V-0
Operating temperature
Tu
-40/+85°C
Protection rating
IP20
Failsafe mode
Disconnection from AC network
Disconnection indicator
1 mechanical indicator - Red/Green
Spare module(s)
MDAC1-13VG-275
Remote signaling of disconnection
output on changeover contact
Wiring for remote signaling
1.5 mm² max.
Max. Voltage/Current for remote signaling
250 V / 0.5 A (AC) / 30 V / 3 A (DC)
Dimensions
See diagram - 1TE (EN43880)
Weight
0.178 kg
Standards compliance
IEC 61643-11 / EN 61643-11 / UL1449 ed.5
Certification
KEMA / EAC
Thermal disconnector
Internal
Installation ground fault breaker
Type 'S' or delayed
Fuses
125 A min. - 315 A max. - Fuses Type gG
×
