Type 1+2+3 AC surge protector - 3-phase+N
DAC1-13VGS-40-320
Part Number 821730324
- Type 1 + 2 + 3 AC surge protector
- VG Technology
- In : 20 kA
- Iimp : 12,5 kA on 10/350µs impulse
- No leakage current
- Pluggable module for each phase
- Remote signaling
- Optimized to TOV
- EN 61643-11, IEC 61643-11 and UL1449 ed.5 compliance
- Certified EN 61643-11 and IEC 61643-11
Datasheet
The DAC1-13VG is an extreme duty Type 1+2+3 AC surge protector device designed to protect at the entrance of the electrical installation.
This SPD is particularly useful in a high lightning density area where the risk of heavy surge current or even direct strike is high (eg: buildings equipped with lightning rods).
The DAC1-13VG is one-pole SPD and can be used in common mode or common and differential mode.
DAC1-13VG AC surge protectors are designed to be connected in multi-pole configuration to protect single-phase, 3-phase and 3-phase+Neutral AC networks, sometimes associated with a dedicated N/PE SPD.
Select another reference:
- DAC1-13VGS-10-150
- DAC1-13VGS-10-275
- DAC1-13VGS-10-320
- DAC1-13VGS-11-150
- DAC1-13VGS-11-275
- DAC1-13VGS-11-320
- DAC1-13VGS-20-150
- DAC1-13VGS-20-275
- DAC1-13VGS-20-320
- DAC1-13VGS-30-150
- DAC1-13VGS-30-275
- DAC1-13VGS-30-320
- DAC1-13VGS-31-150
- DAC1-13VGS-31-275
- DAC1-13VGS-31-320
- DAC1-13VGS-40-150
- DAC1-13VGS-40-275
- DAC1-13VGS-40-320
|
SPD type
|
IEC | 1+2+3 |
|
Network
|
230/400 V 3-phase+N | |
|
AC system
|
TNS | |
|
Max. AC operating voltage
|
Uc | 320 Vac |
|
Temporary Over Voltage (TOV) Characteristics - 5 sec.
Without disconnection
|
UT | 335 Vac withstand |
|
Temporary Over Voltage (TOV) Characteristics - 120 mn
Without disconnection or with safety disconnection
|
UT | 440 Vac withstand |
|
Residual Current
Leakage current to Ground
|
Ipe | None |
|
Follow current
|
If | None |
|
Nominal discharge current
15 x 8/20 µs impulses
|
In | 20 kA |
|
Max. discharge current
max. withstand @ 8/20 µs by pole
|
Imax | 50 kA |
|
Total Maximum discharge current
max. total withstand @ 8/20 µs
|
Imax Total | 200 kA |
|
Impulse current by pole
max. withstand 10/350µs by pole
|
Iimp | 12.5 kA |
|
Impulse current N/PE
max. withstand 10/350µs
|
Iimp N/PE | 50 kA |
|
Total lightning current
max. total withstand @ 10/350µs
|
Itotal | 50 kA |
|
Withstand on Combination waveform IEC 61643-11
Class III test: 1.2/50µs - 8/20µs
|
Uoc | 6 kV |
|
Specific energy by pole
max. withstand 10/350 µs
|
W/R | 40 kJ/ohm |
|
Protection mode(s)
|
L/PE and N/PE | |
|
Protection level L/PE
@ In (8/20µs) and @ 6 kV (1,2/50 µs)
|
L/PE | 1.5 kV |
|
Protection level N/PE
@ In (8/20µs) and @ 6 kV (1,2/50 µs)
|
Up N/PE | 1.5 kV |
|
Protection level N/PE at 5 kA
@ 5 kA (8/20µs)
|
Up-5kA | 0.9 kV |
|
Residual voltage L/PE at 5 kA
@ 5 kA (8/20µs)
|
Up-5kA | 0.9 kV |
|
Admissible short-circuit current
|
Isccr | 50 000 A |
|
Network type
|
AC | |
|
Technology
|
VG Technology (MOV+GSG) | |
|
SPD configuration
|
3-phase+Neutral | |
|
Connection to Network
|
By screw terminals: 2.5-25mm² (35mm² rigid) | |
|
Format
|
Plug-in modular box | |
|
Plugable
|
Yes | |
|
Mounting
|
Symmetrical rail 35 mm (EN 60715) | |
|
Housing material
|
Thermoplastic UL94 V-0 | |
|
Operating temperature
|
Tu | -40/+85°C |
|
Protection rating
|
IP20 | |
|
Failsafe mode
|
Disconnection from AC network | |
|
Disconnection indicator
|
1 mechanical indicator by pole - Red/Green | |
|
Spare module(s)
|
MDAC1-13VG-320 | |
|
Remote signaling of disconnection
|
output on changeover contact | |
|
Wiring for remote signaling
|
1.5 mm² max. | |
|
Max. Voltage/Current for remote signaling
|
250 V / 0.5 A (AC) / 30 V / 3 A (DC) | |
|

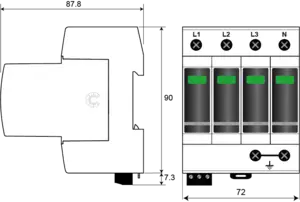

Dimensions
|
See diagram - 4TE (EN43880) |
|
Standards compliance
|
IEC 61643-11 / EN 61643-11 / UL1449 ed.5 | |
|
Certification
|
KEMA |
|
Thermal disconnector
|
Internal | |
|
Installation ground fault breaker
|
Type 'S' or delayed | |
|
Back-up protection device
|
Fuse assembly: SFD1-13S-40 /or 125 A min. - 315 A max. - Fuses Type gG |
