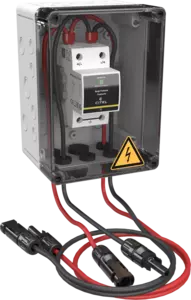

PV-DC-Junction box
Part Number: 156953
CiPlug1-DP40VG-1-XS
- Junction box for 1 MPP-Tracker / 1 String
- Surge protection integrated (DPVN40CVG-21Y-1200, Type 2+3)
- Protection rating IP65
- Connection cables pre-assembled with MC4 connectors
With the new CiPlug1-XS series, CITEL offers a solution to protect the DC side of small and medium-sized photovoltaic (PV) systems with 1 MPPT and system voltages (Ucpv) up to 1200 Vdc against the effects of lightning and surge impulses. With their compact dimensions, the CiPlug1-XS are ideal for rooftop installations in the residential sector. The CiPlug1-XS feature pre-assembled PV cables equipped with MC4 connectors, enabling particularly quick and easy installation. Depending on the configuration, the CiPlug1-XS is optimised for PV systems on buildings in lightning protection class III/IV with ≥ 4 down conductors according to Table 2, VDE 0185-305 Supplement 5, Fpr TS 50539-12 : 2013 and ground-mounted PV systems.
Datasheet|
SPD type
|
IEC | 2+3 |
|
Network
|
PV network 1000 Vdc |
|
|
Nominal DC voltage
|
Un-dc | 1000 Vdc |
|
Rated insulation voltage
Ui
|
Ui | 1000 Vdc |
|
Rated current
InA
|
InA | 20 A |
|
Rated string current
|
InC | 20 A |
|
Housing material
|
UV and ozone resistant, glass fibre reinforced polycarbonate |
|
|
Dimensions
|
See diagram |
|
|
Input / per MPPT
|
MC4 plug 1x 6mm² with 15cm connection cable |
|
|
Output / per MPPT
|
MC4-Stecker 1x 6mm² mit 120cm Anschlussleitung |
|
|
Ground connection terminal
|
Screw terminal 2.5-25mm² (35mm²) |
|
|
Cable gland
|
Metric / 1x M24 (Ø 6-12mm) PE |
|
|
Housing material
|
UV and ozone resistant, fiberglass reinforced polycarbonate with semi-transparent cover |
|
|
Dimensions
|
WxHxD (mm): 130 x 180 x 111 |
|
|
Ambient temperatures
|
Indoor: -5°C to max. +40°C (+35°C 24h average) / Outdoor: -25°C to max. +40°C (+35°C 24h average) |
|
|
Humidity
|
Indoor: max. 50% at +40°C, max. 90% at 20°C (non-condensing) / Outdoor: 95% for a short time at +25°C (non-condensing) |
|
|
Protection rating
|
IP 65 |
|
|
Protection class
|
Class II |
|
|
Impact resistance
|
IK 8 |
|
|
Pressure compensation element
|
Existing |
|
Standards compliance
|
DIN EN 50539-11 / DIN EN IEC 61439-2 |
