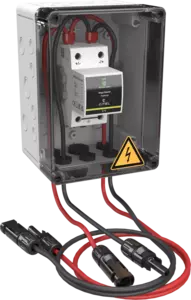

PV-DC-Junction box

CiPlug1-DP6-1-XS
Part Number 156954
CiPlug1-DP6-1-XS
  • Junction box for 1 MPP-Tracker / 1 String
  • Surge protection integrated
  • Protection rating IP65
  • Connection cables pre-assembled with MC4 connectors
Contact Us
With the new CiPlug string box, CITEL is providing a solution to protect the DC side of small and medium-sized Photovoltaic (PV) systems against the effects of surges and overvoltages. With its small dimensions, the CiPlug is ideal for rooftop installations in the residential building sector. The CiPlug includes pre-assembled pv-cables equipped with MC4 plugs, which enables a very fast and easy installation. With its maximum system voltage (Ucpv) of 1200 Vdc, it is applicable for any common configuration and reliably protects the MPP tracker of the inverter. Depending on the configuration, the CiPlug meets the normative requirements for all types of buildings with or without external lightning protection system up to lightning protection class I (Iimp = 12.5 kA / pole (10/350)).
SPD type
1+2+3
Network
 PV network 1000 Vdc
Nominal DC voltage
 Un-dc 1000 Vdc
Rated insulation voltage
Ui
 Ui 1000 Vdc
Rated current
InA
 InA 20 A
Rated string current
 InC 20 A
Housing material
 UV and ozone resistant, glass fibre reinforced polycarbonate
Dimensions
 See diagram
Input / per MPPT
 MC4 plug 1x 6mm² with 15cm connection cable
Output / per MPPT
 MC4-Stecker 1x 6mm² mit 120cm Anschlussleitung
Ground connection terminal
 Screw terminal 2.5-25mm² (35mm²)
Cable gland
 Metric / 1x M24 (Ø 6-12mm) PE
Housing material
 UV and ozone resistant, fiberglass reinforced polycarbonate with semi-transparent cover
Dimensions
 WxHxD (mm): 130 x 180 x 111
Ambient temperatures
 Indoor: -5°C to max. +40°C (+35°C 24h average) / Outdoor: -25°C to max. +40°C (+35°C 24h average)
Humidity
 Indoor: max. 50% at +40°C, max. 90% at 20°C (non-condensing) / Outdoor: 95% for a short time at +25°C (non-condensing)
Protection rating
 IP 65
Protection class
 Class II
Impact resistance
 IK 8
Pressure compensation element
 Existing
Standards compliance
 DIN EN 50539-11 / DIN EN IEC 61439-2
