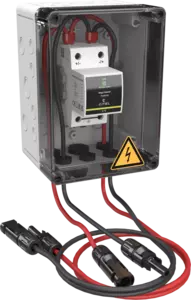

PV-DC-Junction box

CiPlug1-DP6VG-1-XS
Part Number 156955
CiPlug1-DP6VG-1-XS
  • Junction box for 1 MPP-Tracker / 1 String
  • Surge protection integrated (DPVN1-6CVG-21Y-1200, Type 1+2+3)
  • Protection rating IP65
  • Connection cables pre-assembled with MC4 connectors

With the new CiPlug1-XS series, CITEL offers a solution to protect the DC side of small and medium-sized photovoltaic (PV) systems with 1 MPPT and system voltages (Ucpv) up to 1200 Vdc against the effects of lightning and surge impulses. With their compact dimensions, the CiPlug1-XS are ideal for rooftop installations in the residential sector. The CiPlug1-XS feature pre-assembled PV cables equipped with MC4 connectors, enabling particularly quick and easy installation. Depending on the configuration, the CiPlug1-XS is optimised for PV systems on buildings in lightning protection class III/IV with ≥ 4 down conductors according to Table 2, VDE 0185-305 Supplement 5, Fpr TS 50539-12 : 2013 and ground-mounted PV systems.


SPD type
IEC

1+2+3

Network

PV network 1000 Vdc

Nominal DC voltage
Un-dc

1000 Vdc

Rated insulation voltage
Ui
Ui

1000 Vdc

Rated current
InA
InA

20 A

Rated string current
InC

20 A

Housing material

UV and ozone resistant, glass fibre reinforced polycarbonate

Dimensions

See diagram

Input / per MPPT

MC4 plug 1x 6mm² with 15cm connection cable

Output / per MPPT

MC4-Stecker 1x 6mm² mit 120cm Anschlussleitung

Ground connection terminal

Screw terminal 2.5-25mm² (35mm²)

Cable gland

Metric / 1x M24 (Ø 6-12mm) PE

Housing material

UV and ozone resistant, fiberglass reinforced polycarbonate with semi-transparent cover

Dimensions

WxHxD (mm): 130 x 180 x 111

Ambient temperatures

Indoor: -5°C to max. +40°C (+35°C 24h average) / Outdoor: -25°C to max. +40°C (+35°C 24h average)

Humidity

Indoor: max. 50% at +40°C, max. 90% at 20°C (non-condensing) / Outdoor: 95% for a short time at +25°C (non-condensing)

Protection rating

IP 65

Protection class

Class II

Impact resistance

IK 8

Pressure compensation element

Existing

Standards compliance

DIN EN 50539-11 / DIN EN IEC 61439-2
