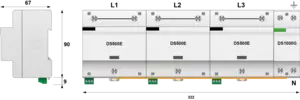

Type 1+2 AC surge protector - 3-phase+N

Part Number: 64017
  • Type 1 + 2 multipolar AC surge protector
  • Iimp total : 100 kA (10/350µs impulse)
  • Imax : 140 kA (8/20µs impulse)
  • Internal disconnections, status indicator and remote signaling
  • Conforme NF EN 61643-11, IEC 61643-11, UL1449 ed.5

The DS500E range of surge protectors are Type 1 + 2, very high power, they are intended to be installed at the entry of the Low Voltage installation. They are used to protect single-phase, three-phase or three-phase + Neutral networks in common mode or in common and differential mode. The 'Multi-Varistor' technology used allows the best possible behavior for the LV network (no follow-on current). The DS500E range is installed on a DIN Rail and has a double connection for the active conductor, which allows an optimized connection to the network.

SPD type 1+2
Network 230/400 V 3-phase+N
AC system TT-TNS
Nominal line voltage Un 230 Vac
Max. AC operating voltage Uc 320 Vac
Max. load current IL 100 A
Temporary Over Voltage (TOV) Charasteristics - 5 sec. UT 335 Vac withstand
Temporary Over Voltage (TOV) Charasteristics - 120 mn UT 440 Vac disconnection
Temporary Over Voltage N/PE (TOV HT) UT 1200 V/300A/200 ms withstand
Operating current Ic None
Follow current If None
Nominal discharge current In 50 kA
Max. discharge current Imax 200 kA
Impulse current by pole Iimp 50 kA
Total lightning current Itotal 100 kA
Specific energy by pole W/R 156 kJ/ohm
Connection mode(s) L/N and N/PE
Protection mode(s) Common/Differential mode
Protection level L/N Up L/N 1.8 kV
Protection level N/PE Up N/PE 1.5 kV
Residual voltage L/N at 5 kA Up-5kA 1.2 kV
Protection level N/PE at 5 kA Up-5kA 1.2 kV
Admissible short-circuit current Isccr 50 000 A
Technology MOV
SPD configuration 3-phase
Connection to Network By screw terminals: 6-35mm² / by bus
Format 1-pole modular box assembled
Mounting Symmetrical rail 35 mm (EN 60715)
Housing material Thermoplastic UL94 V-0
Operating temperature Tu -40/+85°C
Protection rating IP20
Failsafe mode Disconnection from AC network
Disconnection indicator 1 mechanical indicator by pole
Remote signaling of disconnection Output on changeover contact
Dimensions See diagram
Standards compliance IEC 61643-11 / EN 61643-11 / UL1449 ed.5
Certification EAC
Thermal disconnector Internal
Installation ground fault breaker Type 'S' or delayed
Fuses Fuses Type gG - 500 A
