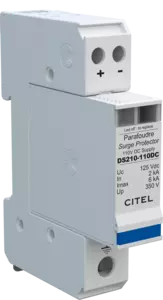

DC power surge protector - 110 Vdc
Part Number: 440901
DS210-110DC
- Surge protector for DC supplies
- 110 Vdc
- Imax: 6 kA
- Pluggable module
- Operating indicator
- IEC 61643-11, EN 61643-11 and UL1449 4ed. compliance
DS210-DC surge protectors are designed to protect equipment connected to DC (and AC) power supplies from lightning surges.
It is based on varistors matched to the network voltage: the varistors have thermal disconnection devices to control any end-of-life.
These SPD are DIN rail compatible and is connected in parallel on the line to be protected.
Certificates
Datasheet
|
SPD type
|
IEC | 2+3 |
|
Network
|
DC network 110 Vdc |
|
|
Nominal DC voltage
|
Un-dc | 110 Vdc |
|
Max. AC operating voltage
|
Uc | 95 Vac |
|
Max. DC operating voltage
|
Uc | 125 vdc |
|
Max. load current @25°C
|
IL | 20 A |
|
Residual Current
Leakage current to Ground
|
Ipe | < 0.2 mA |
|
Operating current
Continious current at Uc
|
Ic | < 0.1 mA |
|
PV Permanent Operating current
Current consumption at Ucpv
|
Icpv | < 0.1 mA |
|
Follow current
|
If | None |
|
Nominal discharge current
15 x 8/20 µs impulses
|
In | 2 kA |
|
Max. discharge current
max. withstand @ 8/20 µs by pole
|
Imax | 6 kA |
|
Total Maximum discharge current
max. total withstand @ 8/20 µs
|
Imax Total | 6 kA |
|
Current withstand short circuit PV
|
Iscpv | 1000 A |
|
Connection mode(s)
|
+/-/PE |
|
|
Protection mode(s)
|
Common/Differential mode |
|
|
Protection level +/PE (-/PE)
@ In (8/20µs)
|
Up | 350 V |
|
Technology
|
MOV |
|
|
SPD configuration
|
2-poles |
|
|
Connection to Network
|
By screw terminals: 1.5-10mm² (actives wires) and 2.5-25mm² (ground) |
|
|
Format
|
Plug-in modular box |
|
|
Mounting
|
Symmetrical rail 35 mm (EN 60715) |
|
|
Housing material
|
Thermoplastic UL94 V-0 |
|
|
Operating temperature
|
Tu | -40/+85°C |
|
Protection rating
|
IP20 |
|
|
Outdoor application
|
No |
|
|
Failsafe mode
|
Disconnection from DC network |
|
|
Disconnection indicator
|
Green LED(s) OFF |
|
|
Spare module(s)
|
DSM210-110DC |
|
|
Dimensions
|
See diagram |
|
Standards compliance
|
IEC 61643-11 / EN 61643-11 / UL1449 ed.5 |
|
Thermal disconnector
|
Internal |
|
|
Back-up protection device
|
Fuses type gG - 10 A |
