AC Power
Type 2 DC surge protector

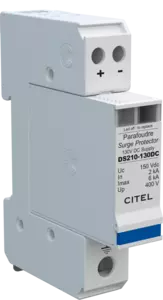

DS210-130DC
DC power surge protector - 130 Vdc
DS210-130DC
Part Number:
440602
Surge protector for DC supplies
12 Vdc
Imax : 2 kA
Pluggable module
Operating indicator
IEC 61643-11, EN 61643-11 and UL1449 ed.5 compliance
Datasheet
Installation Sheet
Tender specifications
Contact Us
DS210-DC surge protectors are designed to protect equipment connected to DC (and AC) power supplies from lightning surges. It is based on varistors matched to the network voltage: the varistors have thermal disconnection devices to control any end-of-life. These SPD are DIN rail compatible and is connected in parallel on the line to be protected.
Select another reference:
DS210-110DC
DS210-12DC
DS210-130DC
DS210-24DC
DS210-48DC
DS210-75DC
DS210-95DC
Electrical Properties
Mechanical Properties
Norms
Deconnector
Schemas
SPD type
2 (or 3)
Network
DC network 130 Vdc
Nominal DC voltage
Un-dc
130 Vdc
Max. AC operating voltage
Uc
115 Vac
Max. DC operating voltage
Uc
150 Vdc
Max. load current
IL
20 A
Residual Current
Ipe
< 0.1 mA
Operating current
Ic
< 0.1 mA
PV Permanent Operating current
Icpv
< 0.1 mA
Follow current
If
None
Nominal discharge current
In
2 kA
Max. discharge current
Imax
6 kA
Total Maximum discharge current
Imax Total
6 kA
Current withstand short circuit PV
Iscpv
1000 A
Connection mode(s)
+/-/PE
Protection mode(s)
Common/Differential mode
Protection level +/PE (-/PE)
Up
400 V
Technology
MOV
SPD configuration
2-poles
Connection to Network
By screw terminals: 1.5-10mm² (actives wires) and 2.5-25mm² (ground)
Format
Plug-in modular box
Mounting
Symmetrical rail 35 mm (EN 60715)
Housing material
Thermoplastic UL94 V-0
Operating temperature
Tu
-40/+85°C
Protection rating
IP20
Outdoor application
No
Failsafe mode
Disconnection from DC network
Disconnection indicator
Green LED(s) OFF
Spare module(s)
DSM210-130DC
Dimensions
See diagram
Standards compliance
IEC 61643-11 / EN 61643-11 / UL1449 ed.5
Thermal disconnector
Internal
Fuses
Fuses type gG - 10 A
×
