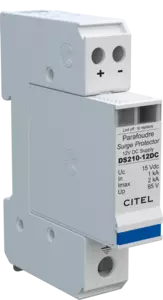

DC power surge protector - 12 Vdc

DS210-12DC
Part Number 440201
DS210-12DC
  • Surge protector for DC supplies
  • 12 Vdc
  • Imax : 2 kA
  • Pluggable module
  • Operating indicator
  • IEC 61643-11, EN 61643-11 and UL1449 ed.5 compliance

DS210-DC surge protectors are designed to protect equipment connected to DC (and AC) power supplies from lightning surges. It is based on varistors matched to the network voltage: the varistors have thermal disconnection devices to control any end-of-life. These SPD are DIN rail compatible and is connected in parallel on the line to be protected.


SPD type
IEC

2 (or 3)

Network

DC network 12 Vdc

Nominal DC voltage
Un-dc

12 Vdc

Max. AC operating voltage
Uc

10 Vac

Max. DC operating voltage
Uc

15 Vdc

Max. load current @25°C
IL

20 A

Residual Current
Leakage current to Ground
Ipe

< 0.2 mA

Operating current
Continious current at Uc
Ic

< 0.1 mA

PV Permanent Operating current
Current consumption at Ucpv
Icpv

< 0.1 mA

Follow current
If

None

Nominal discharge current
15 x 8/20 µs impulses
In

1 kA

Max. discharge current
max. withstand @ 8/20 µs by pole
Imax

2 kA

Total Maximum discharge current
max. total withstand @ 8/20 µs
Imax Total

2 kA

Current withstand short circuit PV
Iscpv

1000 A

Connection mode(s)

+/-/PE

Protection mode(s)

Common/Differential mode

Protection level +/PE (-/PE)
@ In (8/20µs)
Up

85 V

Technology

MOV

SPD configuration

2-poles

Connection to Network

By screw terminals: 1.5-10mm² (actives wires) and 2.5-25mm² (ground)

Format

Plug-in modular box

Mounting

Symmetrical rail 35 mm (EN 60715)

Housing material

Thermoplastic UL94 V-0

Operating temperature
Tu

-40/+85°C

Protection rating

IP20

Outdoor application

No

Failsafe mode

Disconnection from DC network

Disconnection indicator

Green LED(s) OFF

Spare module(s)

DSM210-12DC

Dimensions

See diagram

Weight

0.092 kg

Standards compliance

IEC 61643-11 / EN 61643-11 / UL1449 ed.5

Thermal disconnector

Internal

Back-up protection device

Fuses type gG - 10 A
