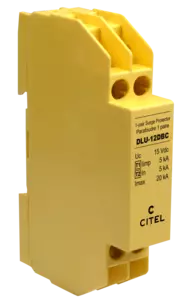

1-pair monobloc Data surge protector

Part Number: 640512
DLU-12DBC
DLU-12DBC
DLU-12DBC
DLU-12DBC
  • Discover our latest innovation : the DLU-12D3
  • For DIN rail mounting
  • Monobloc housing
  • 1-pair
  • Un: 12 V
  • Transmission an protection of shield wire
  • IEC 61643-21 compliance
  • UL497A
DLU surge protectors are designed to protect, against surge voltages due to lightning, terminals equipment connected to industrial buses, telecom lines or datalines. These surge protectors must be installed on symmetrical DIN rail and are available for most of the transmission lines: line voltage from 6 to 170V, bitrate up to 10 Mbit/s. These products are 1-pair surge protectors and are made with DIN rail monobloc enclosure

Network

12 V line, High bitrate
Nominal line voltage
 Un

12 V
Max. DC operating voltage
 Uc

15 Vdc
Max. frequency
 f max.

20 MHz
Cut-off frequency
-3dB, 100 ohm system
 f max.

> 140 MHz
Cut-off frequency
-1dB, 100 ohm system
 f max.

> 60 MHz
Insertion loss

< 1 dB
Max. load current @25°C
 IL

300 mA
Max. discharge current
max. withstand @ 8/20 µs by pole
 Imax

20 kA
Nominal discharge current
C2 Category
 In

5 kA
Protection mode(s)

Common/Differential mode
Protection Level
C3 (10/1000μs), 300 applications@10 A, Y-Y (Line/Line)
 Up

35 V
Protection Level
C3 (10/1000μs), 300 applications@10 A, Y-C (Line/Earth)
 Up

35 V
Max. capacitance
 C

< 50 pF
Impulse current
2 x 10/350µs Test - D1 Category
 Iimp

5 kA
Line resistance (± 10%)

4.7 Ohm

Technology

GDT+TVS diode
SPD configuration

1-pair+shielded
Connection to Network

By screw terminal - cross section 1.5-2.5mm²
Format

DIN box
Mounting

Symmetrical rail 35 mm (EN 60715)
Housing material

Thermoplastic UL94 V-0
Operating temperature
 Tu

-40/+85°C
Protection rating

IP20
Failsafe mode

Short-circuit
Disconnection indicator

Transmission interrupt - default mode 2
Dimensions

See diagram

Standards compliance

IEC 61643-21 / EN 61643-21 / UL497 A
Certification

UL 497B
