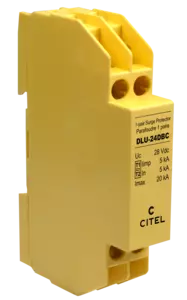

1-pair monobloc Data surge protector

DLU-24DBC
Part Number 640513
DLU-24DBC
  • For DIN rail mounting
  • Monobloc housing
  • 1-pair
  • Un: 24 V
  • Transmission an protection of shield wire
  • IEC 61643-21 compliance
  • UL497A
Contact Us
DLU surge protectors are designed to protect, against surge voltages due to lightning, terminals equipment connected to industrial buses, telecom lines or datalines. These surge protectors must be installed on symmetrical DIN rail and are available for most of the transmission lines: line voltage from 6 to 170V, bitrate up to 10 Mbit/s. These products are 1-pair surge protectors and are made with DIN rail monobloc enclosure
Network
 24 V line, High bitrate
Nominal line voltage
 Un 24 V
Max. DC operating voltage
 Uc 28 Vdc
Max. frequency
 f max. > 20 MHz
Insertion loss
 < 1 dB
Max. load current
@25°C
 IL 300 mA
Max. discharge current
max. withstand @ 8/20 µs by pole
 Imax 20 kA
Line inductance
 No
Protection mode(s)
 Common/Differential mode
Protection level
@ In (8/20 µs)
 Up L/L 50 V
Max. capacitance
 C < 50 pF
Impulse current
2 x 10/350µs Test - D1 Category
 Iimp 5 kA
Nominal discharge current
C2 Category
 In 5 kA
Line resistance
 < 4.7 Ohm
Network type
 Data Communication
Technology
 GDT+Clamping diode
SPD configuration
 1-pair+shielded
Connection to Network
 By screw terminal - cross section 1.5-2.5mm²
Format
 DIN box
Mounting
 Symmetrical rail 35 mm (EN 60715)
Housing material
 Thermoplastic UL94 V-0
Operating temperature
 Tu -40/+85°C
Protection rating
 IP20
Failsafe mode
 Short-circuit
Disconnection indicator
 Transmission interrupt - default mode 2
Dimensions
 See diagram
Standards compliance
 IEC 61643-21 / EN 61643-21 / UL497 A
Certification
 UL 497B
