1-pair DIN rail plug-in Data surge protector
Part Number: 6417011
DLATS1-06D3
- 1-pairdataline/telecom surge protection
- Local and Remote signaling of SPD status
- DIN rail mounting, Screw connect status
- Plug-in module
- 1 monitoring module + SPD modules (up to 48) + bus
- Discharge current Imax/In: 20 kA /5kA
- Complies with IEC/EN 61643-21 and UL497B
DLA surge protectors are designed to protect, against surge voltages due to lightning, terminals equipment connected to industrial buses, telecom lines or datalines.
These surge protectors must be installed on symmetrical DIN rail and are available for most of the transmission lines: line voltage from 6 to 170V, bitrate up to 10 Mbit/s.
These products are 1-pair surge protectors with removable module for easy maintenance.
Certificates
Datasheet
|
Network
|
RS422 |
|
|
Nominal line voltage
|
Un | 6 V |
|
Max. DC operating voltage
|
Uc | 8 Vdc |
|
Max. frequency
|
f max. |
|
|
Insertion loss
|
< 1 dB |
|
|
Max. load current @25°C
|
IL | 300 mA |
|
Max. discharge current
max. withstand @ 8/20 µs by pole
|
Imax | 20 kA |
|
Nominal discharge current
C2 Category
|
In | 5 kA |
|
Nominal Discharge Current, X-C (Line/Earth)
8/20µs Test x 10 - C2 Category
|
In L/PE | 5 kA |
|
Protection mode(s)
|
Common/Differential mode |
|
|
Protection Level
C3 (10/1000μs), 300 applications@10 A, Y-Y (Line/Line)
|
Up | 20 V |
|
Protection Level
C3 (10/1000μs), 300 applications@10 A, Y-C (Line/Earth)
|
Up | 20 V |
|
Impulse current
D1 (10/350μs), 2 applications, X-C (Line/Earth)
|
Iimp | 5 kA |
|
Line/Line Nominal discharge current
C2 Category
|
In L/L | 5 kA |
|
Line resistance (± 10%)
|
4.7 Ohm |
|
Technology
|
GDT+Clamping diode+PTC (thermal resistor) + Resistor |
|
|
SPD configuration
|
1-pair+shielded |
|
|
Connection to Network
|
By screw terminal: cross section 0.5-2.5mm² |
|
|
Format
|
Plug-in DIN box |
|
|
Mounting
|
Symmetrical rail 35 mm (EN 60715) |
|
|
Housing material
|
Thermoplastic UL94 V-0 |
|
|
Operating temperature
|
Tu | -40/+85°C |
|
Protection rating
|
IP20 |
|
|
Failsafe mode
|
Transmision cut-off - fault mode 2 (short circuit) |
|
|
Disconnection indicator
|
Red light on |
|
|
Spare module(s)
|
DLATSM1-06D3 |
|
|
Remote signaling of disconnection
|
Trough control module |
|
|
Connection bus
|
SPD connection/control module by bus: bus 1+4 (1control module+4 SPD), bus 1+9, bus 1+24 and bus 1+48 |
|
|

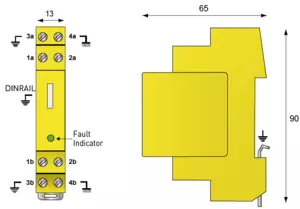

Dimensions
|
See diagram |
|
Standards compliance
|
IEC 61643-21 / EN 61643-21 / UL497B |
|
|
Environmental standards
|
EU RoHS |
